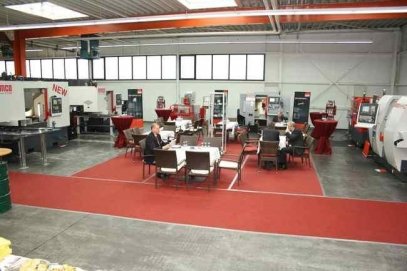

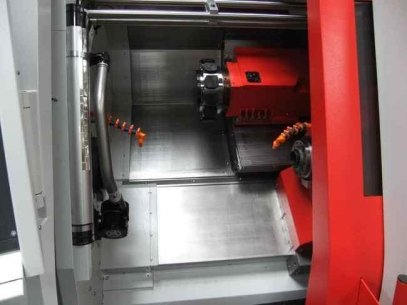

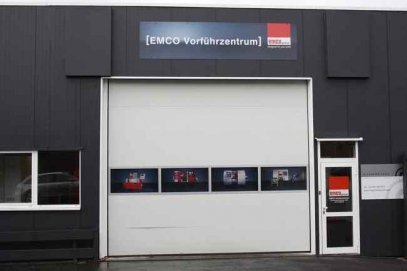

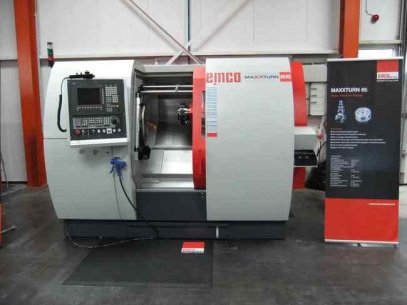

MAXXTURN 65 from the demonstration Remscheid! 500mm X / Y / Z 260/80 (+ -40) / 610 mm bar capacity 65mm Max swing Swing over bed 610mm Distance between centers 600mm spindle spacing 830mm rapid traverse XYZ 30/15/40 main spindle: Max speed 5000 rev / min spindle A2-6 Max Drive power 29 kW Max torque 250 Nm spindle: Max speed 7000 rev / min spindle A2-6 Max power 22 kW Max torque 130 Nm turret: VDI 30 12 stations, all powered High speed 5000 rev / min drive power 6.7 kW Max torque 25 Nm The machine can be inspected under power in Remscheid.

-
