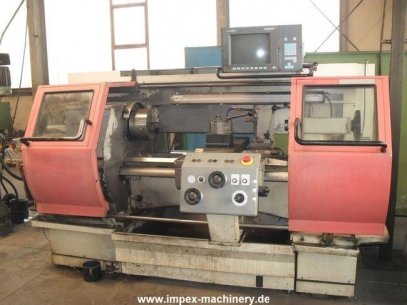

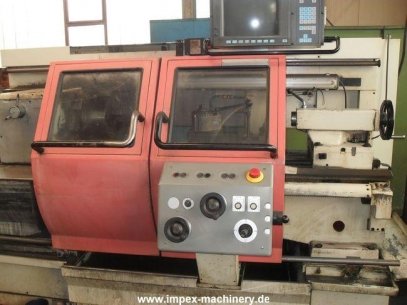

Ladies and gentlemen! Below we offer subject to change: Make: Gildemeister Designation: CNC Lathe Type: NEF plus 500 Year: 1996 Specifications: Working range: Current - over bed 500 mm swing - over cross slide 290 mm chuck - 250 mm Cross travel 260 mm turning length 1000 mm spindle: headstock spindle bore DIN 55027 size 8 - 70 mm hollow spindle nose cone of the metric spindles 80 - in front bearing 100 mm Main drive motor: power capacity at 100% duty cycle 11 kW Max torque 100% duty cycle 1050 Nm Speed range 1 Gear 8-250 rpm range 2 Gear speed range 3 20-710 Feed drive gear 80-2800 AC: X-thrust 100% ED 5000 N Z-power feed 100% ED 10000 N X-Eilgang/Vorschubgeschw. 6 m / min Z-Eilgang/Vorschubgeschw. 8 m / min tailstock quill - 80 mm spindle stroke 180 mm quill taper MT 5 Machine Dimensions: Length: 2500 mm Width: 1835 mm Height: 1865 mm Weight: 2650 kg Please let us know if you still interested in acquiring such a machine are. If you are looking for other objects, or even intend to sales, we also ask for your information only. If you are interested to hear from you. Sincerely, Signed Andree
