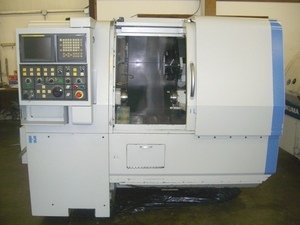

C-Axis Milling Capability, Ballscrew Driven Sub Spindle, Spego Turnamic 126H-16 Hydrodynamic 12 ft. Barfeed, Auto Parts Catcher, Turbo Chip Conveyor
Specifications:
Chuck Size 8"
Max Diameter Bar Capacity 2"
Max Swing Over Bed 21"
Max Turning Diameter 13.4"
Max Machining Length 14"
Spindle Speed 1500 - 6000 RPM
Spindle Bore 2.4"
Spindle Nose A2-5
Spindle Motor 15 HP
Spindle Torque 70 ft. lbs.
Tools 12 (Live or Turning)
Milling Motor 5 HP
Milling Speed 5000 RPM
Rapid Traverse Rates 1181 IPM
X-Axis Travel 8.25"
Z-Axis Travel 14"
C-Axis Index .001 Degrees
Turret Index (Single Step / Full) 0.1 Seconds
Machine Dimensions (L x W x H) 89.7" x 64" x 68.7"
Machine Weight 6200 lbs.
FEATURES:
GE FANUC 18i-TB CNC CONTROL
10.4" Color LCD
C-Axis Milling Capability
Ballscrew Driven Sub Spindle
Spego Turnamic 126H-16 Hydrodynamic 12 ft. Barfeed
Auto Parts Catcher
Turbo Chip Conveyor
