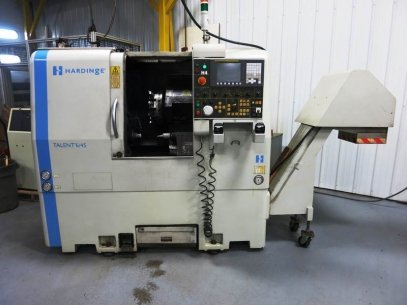

HARDINGE TALENT 6/45 2-AXIS CNC TURNING CENTER LATHE
NEW 2006

HARDINGE TALENT 6/45 2-AXIS CNC TURNING CENTER LATHE

SERIAL NUMBER NA NEW 2006

GENERAL SPECIFICATIONS:

Spindle:
Chuck-Ready Spindle Configuration (ANSI) A2-5
Draw tube type Hydraulic
Through Draw Tube Capacity 1.77"
Jaw Chuck Size (Max) 6.65"
Jaw Chuck Size (Gripping Capacity) 5.31"
Machining Diam. (Max.) 11.10"
Turning length (Max.) 15.00"
Hang weight with Device and part 75 Lb.
Spindle centerline height 39.40"
Operators reach to Spindle 11"
AC Digital Spindle Drive System (Fanuc Control)
Peak Horsepower rating 15 HP
Torque Rating 84.5 ft-lb
Base speed 750 RPM
Max. Speed (1-rpm Steps) 6,000 RPM
Siemens Control Option:
Peak Horsepower Rating 17.4 HP
Torque rating 64.6 ft-lb
Base Speed 1,200 RPM
Max. Speed (1-rpm Steps) 6,000 RPM
Carriage and Cross Slide:
Swing Dia. Over Way Cover (Max.) 18.00"
Travel (Max.) X-Axis 9.00"
Z-Axis 16.00"
Traverse Rates (Max.) X and Z Axes 1,181 IPM
Thrust (Max) X-Axis (Fanuc) 1,500 Lb
Z-Axis (Fanuc) 1,500 Lb
X and Z Axes (w/Siemens Option) 1,340 Lb
Ball Screw Diameter X and Z Axes 1,102"
Accuracy-All Machines Laser Inspected:
Evaluation Standard ANSI/ASME B5.57
Positioning X and Z Axes +/- 0002"
Repeatability X and Z Axes -/0 0001"

GENERAL SPECIFICATIONS: (Cont.)
Turret Bidirectional BDI30
Number of stations 12
Square Shank Tool size (Max.) 3/4"
Round shank tool size (Max.) 1-1/4"
Index Time (Adjacent Station) 0.73 second
Tailstock 9Fully Programmable) Option:
Positioning Hydraulic
Morse Taper Center MT No.4
Travel of Tailstock Base 13.42"
Part Length (Max.) 15.00"
Part Length (Min.) 1.68"
Feedrate (Max.) 216 IPM
Thrust (Max.) 779 Lb
Workpiece Dia. x Length (Max.) 2.05" x 4"
Miscellaneous:
Power Supply Requirement-Fanuc Control 220V/67 FLA/3Phase
Coolant Tank Capacity 33 gallons
Coolant pressure - standard 40 PSI
Machine weight (approx) 5,940 lbs

MOTOR SPECIFIATIONS:
Wired 220 Volt

Note: 3,334 Spindle Cutting Hours

EQUIPPED WITH:
Fanuc Oi-TC CNC Control
Collet Chuck for 5C Collets & Tool Setter
12 Position VDI Type Tooling Turret
Misc. Turret Tool Holders
Chip Conveyors & Coolant System
