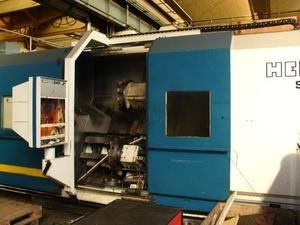

CNC LATHE HEID S500x2000
CNC system: Siemens 880T
Dia. passable over bed: 800mm
Travel of X with upper turret: 450mm
Travel of X with inferior turret: 250mm
Travel of Z with upper turret: 2100mm
Travel of Z with inferior turret: 1887mm
Max. length of workpiece: 2000mm
Travel of tailstock: 1400mm
Spindle: 5-2800r/min, 53KW
Upper turret: 12 tools
Inferior turret: 12 tools
Weight of machine: 14 000kg
Dimension of the machine: 7170x3090x2800mm
Specifications:
CNC LATHE HEID S500x2000
CNC system: Siemens 880T
Dia. passable over bed: 800mm
Travel of X with upper turret: 450mm
Travel of X with inferior turret: 250mm
Travel of Z with upper turret: 2100mm
Travel of Z with inferior turret: 1887mm
Max. length of workpiece: 2000mm
Travel of tailstock: 1400mm
Spindle: 5-2800r/min, 53KW
Upper turret: 12 tools
Inferior turret: 12 tools
Weight of machine: 14 000kg
Dimension of the machine: 7170x3090x2800mm
