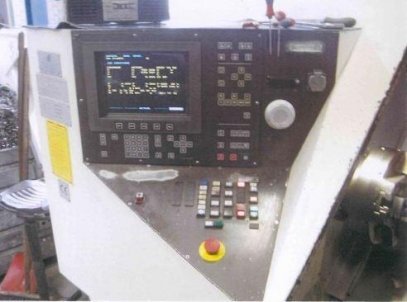

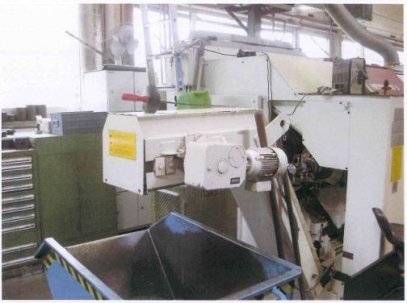

Specifications: Control: CNC Job Title: rotation length: 850 mm Spindle nose-Dist center point tailstock: 985 mm turning diameter over Drehsupp. Above right: 330 mm Max swing over cross slide: 450 mm mesh. Swing over bed: 650 mm Max chuck diameter: 315 mm Height: 1040 mm Distance between centers: 985 mm Capacities: Spindle drive at 100% / 45% duty cycle: 37/53 kW z-axis: 6.75 kW x-axis: 6 75 kW hydraulic: 2.2kW Voltage: 380V Power: 68 kVA main spindle / Direct Drive Spindle head 55026 / A: Size: 8 hole: min 3550 U / 88 mm spindle diameter in front bearing 120 mm Maximum speed. Tool carrier system: tool positions (driven): 12 Tool: DIN 69880 shaft diameter: 40 mm nominal diameter: 25 mm switching time 1 station / 6 stations: 0.8 / 2.2 ⢠Number of bed slides: 1 Number of slide: a longitudinal stroke: 878 Planhub mm: 270 mm Tailstock: Pinolenkegel: Morse 4 sleeve diameter: 100 mm max. Quill stroke: 140 mm axial, min adjustable. 1,000 N axial force, adjustable max: 12000 N dimensions and weight: Length with chip conveyor: 5113 mm Width: 2323 mm Height: 2100 mm Weight: 6000 kg Control: Philips 3580 Lubricants: Bettbahschnmierung : 68 to Hydraulic oil Tellus 32 Special features: Chuck: 3NHF-Z8-82-S12-156 608 SMW self bezel 12-120mm chip conveyor documentation
