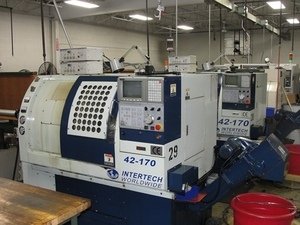

Intertech Model 42-170 3-Axis CNC Gang Style Lathe

Intertech Model 42-170 3-Axis CNC Gang Style Lathe





Max. Bar Capacity: 1-5/8"
Max. Turning Diameter: 3.94"
Nominal Turning Length: 3.15"
Max. Turning Length: 6.69"
X-Axis Travel: 9.84"
Y-Axis Travel: 5.31"
Z-Axis Travel: 8.86"
Spindle Speeds: 50-4000 RPM
Main Motor: 7.5 HP


Equipped with:

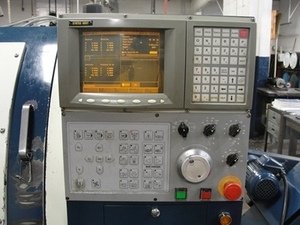

Syntec 900 T CNC Control

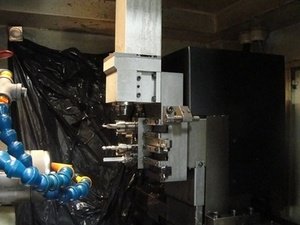

(2) Vertical and (2) Horizontal Live Positions/ER16 Spindles
C-Axis Positioning with Brake
(4) OD Tool Pockets
(4) ID Tool Pockets

90" x 49" x 67"

4,500 lbs.
