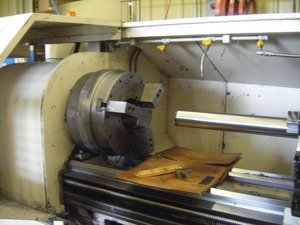

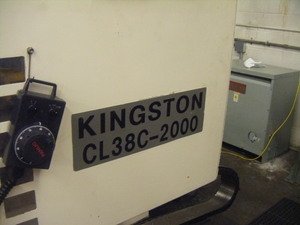

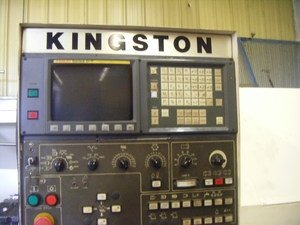

26" x 80" with 7.1" bore. Fanuc OiT Control. Under power and recently had hydraulics and chuck gone thru. They installed a new manual pulse generator also. Northeast location.
Please see spec. sheet.
Thank you.
Specifications:
GENERAL MACHINE SPECIFICATIONS
CL38C
Capacity Swing Over Bed 26”
Maximum Cutting Diameter Chucking 24”
Universal 14 ½”
Distance Between Centers 80”
Maximum Cutting Length 80”
Width of Bed 18”
Headstock Spindle Bore 7.1”
Spindle motor 30 HP(30min)
Type of Spindle Nose A2-15
Gear Box Number of Speed Ranges 2 2
Spindle Speed 3 to 1000

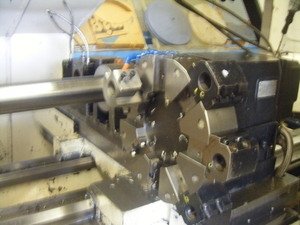

Turret V8 & H6 Servo (Std)
Traverse Max. Stroke X-Axis 21.26”
Z-Axis 80”
Rapid Traverse X-Axis 400 in/min
Z-Axis 400 in/min
Motor Servo Motor X-Axis 4 HP
Z-Axis 5.3 HP
Ball Screw X-Axis Ø1.41”, P=6
Z-Axis Ø1.97”, P=12

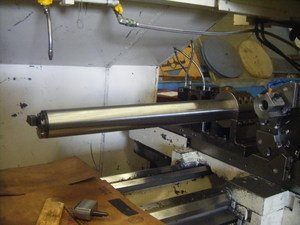

Tailstock Tailstock Quill Center M.T. # 5
Tailstock Quill Diameter Ø3.9”
Tailstock Quill Travel 7.9”
Machine Height 77”
Dimension Floor Space 117”W L: 218”
Weight Net Weight (lbs) 15,870
Power Total Power Required 30 KVA
