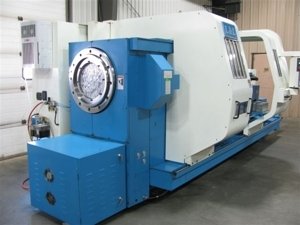

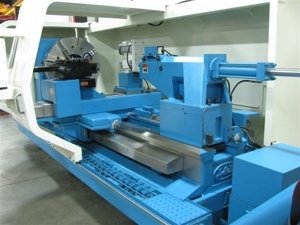

Machine is in like new condition. Main spindle has 5 degree indexing by programmed command, and hydraulic disk brake. Crosslide features heavy duty box-way design with top T-slots to accomodate removeable milling attachment. Schunk chuck is combination 4 jaw self centering with independant jaw adustment for maximum versatility - 39" diameter with 16" through hole.

Specification Description
Control: Fanuc 0i-TC w/ Manual Guide i
Swing over bed: 1270mm
Swing over carriage: 700mm
Max. distance between centers: 2000mm
Travel X: 650mm
Travel Z: 2000mm
Rapid traverse X: 6000mm/min
Rapid traverse Z: 6000mm/min
Spindle speeds: 250 rpm
Spindle nose: A2-28
Spindle bore: 16"
Tool turret: H4-350 VDI
Tailstock quill: 165mm
Tailstock quill movement: Manual & Electric
Tailstock body movement: Motorized
Spindle drive motor (30min./cont.): 30/37 kW

Equipped With:
Five Degree Spindle Indexing System Hydraulic Spindle Brake Brio Removable Milling Attachment BF-40 Rear Spindle Adapter Schunk 4-Jaw Combination Chuck WAFR4-1000-410 H4-350 VDI Turret (2) Steady Rests Box way crosslide
