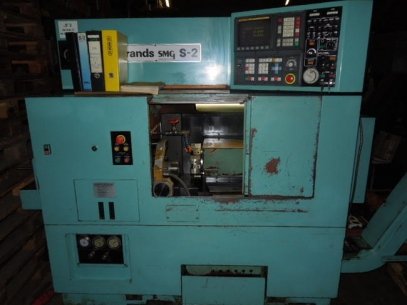

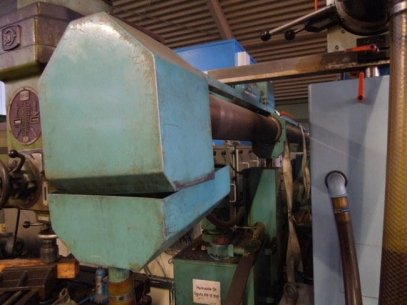

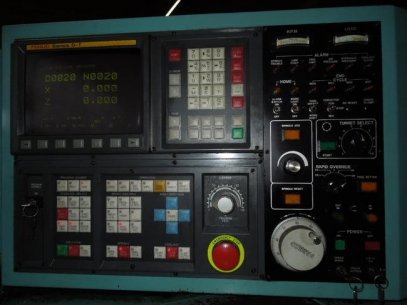

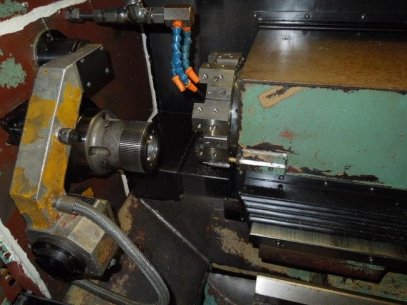

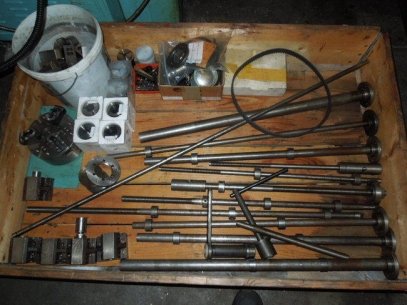

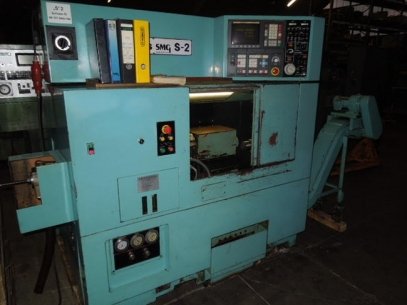

Manufacturer: Leadwell Importer: SMG Strands Model: S2 Control: FANUC 0-T main spindle: A2-5 "Spindle Bore: 50mm bar capacity by drawtube: 38mm Speed: 100-4500 1/min power: 7.5 KW chuck diameter: 152mm ( 8 ") Z-travel: 350mm X-travel: 115mm swing over bed: 375mm Swing over carriage: 175mm Rapid traverse: 10 m / min / 15m/min Vorscubkraft: 3.7 kN Revolver: 8 positions cycle time. 0.5 sec / Station Shaft: 20mm boring bars: 25mm Tailstock sleeve: 50mm stroke: 75mm features: Chip Conveyor Tool Eye Coolant bar feed IRCO to 38mm rods (3m) Reduzierrohre Collet chuck with collet set Three jaw chuck jaws set 6 tool holders were Various spare parts documentation It recently following repairs performed: complete overhaul Revolver (seals, hoses, etc.) bearing the main spindle (since no run 50 hours) The machine can be tested in our warehouse.
