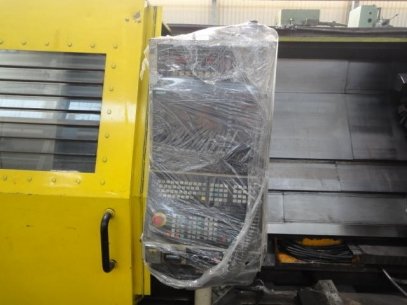

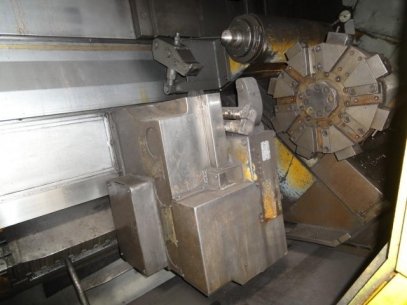

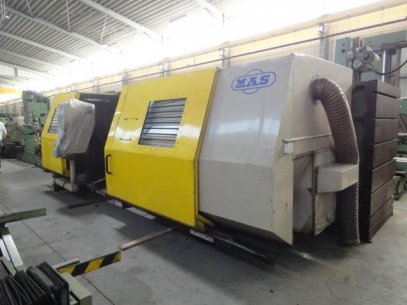

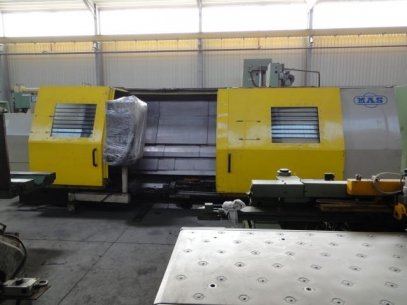

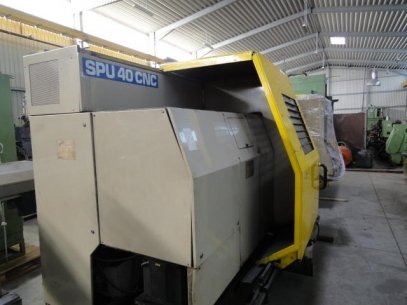

CNC heavy duty lathe MAS SPU 40 / SIEMENS 840D built 1997 2500mm turning diameter 610 mm turning length 2500 mm Weight 15 t Heavy duty CNC lathe MAS, SPU 40/2500 mm. Control system SIEMENS 840 D Producer: MAS KOVOSVIT (Czech Republic) Year of manufacturing: 1997 Technical data: Maximum swing dia. over bed: 610 mm Max turning length: 2500 mm Spindle nose: (DIN 55026), size A (Opt) - 11 Max bar stock capacity: output mm 80 Main motor: 30 kW Spindle speed range: rpm 25-3150 Upper saddle Z: 2780 mm Travel Rapid traverse: m / min 12 Upper Cross slide X Travel mm 310 Rapid traverse: m / min 10 Lower saddle W: 2810 mm Travel Rapid traverse m / min 12 Upper U cross slide: 220 mm travel Rapid traverse m / min 10 Upper turret Number of positions: Lower turret 12 Number of positions: 8 Weight 15 000 kg
