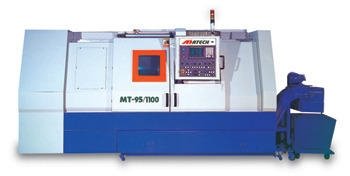

turning diameter 640 mm
turning length 1030 mm
control FANUC 0i TD
swing diameter over face slide 480 mm
max. swing diameter 450 mm
chucking diameter 254 mm
bar material dia. 95 mm
travel -z axis 1090 mm
spindle bearing diameter 150 mm
travel -x axis 225+50 mm
spindle speeds 2500 1/min.
spindle drive 22 kW
spindle speed 545 NM
spindle nose A2-8
spindle bore 105 mm
tool turret with 10 work positions
Shank diameter 40 mm
tool taper 25x25 mm
rapid speed x-axis 18 m/min
Z + X axis with ball bearing spindles 32/50 (Durchmesser) mm
rapid speed z-axis 24 m/min
diameter tailstock quill 110 mm
tailstock quill stroke 110 mm
tailstock quill taper MT 5
length 3750+752 mm
Width 1935 mm
height 1942 mm
weight 6300 kg
total power requirement 22 kW
A). Standard Machine Accessories:
01). Coolant system with motor and pump.
02). Auto-lubrication system.
03). Hydraulic system with tank, motor, pump and through hole hydraulic cylinder.
04). Hydraulic tailstock.
05). 10 positional Bi-directional turret (for 32 mm square shank tool andƒÓ50 mm boring bar).
06). 12h 3 jaws hollow chuck.
07). Door interlock.
08). Work light.
09). Hand tool kit.
10). 3 color alarm lamp.
11). Leveling seat pad x 6.
12). Leveling Screw and Locking Nut x 6.
14). O. D tool holder, RC3005A x 2.
15). Boring Tool holder, RC3004A x 4.
16). Boring sleeve, O 32 + O 25 + O 20 x 1.
17). Boring sleeve, RC3009 (MT#4) x 1.
18). U drilling sleeve, O 40 O + O 32 + O 25 x 1
19). Foot switch for chuck open / close and tailstock forward / backward.
C). Standard Functions FANUC 0i-TD.
01). Controlled axes (X and Z simultaneously.)
02). Interpolation (Linear and circular.)
03). Reader/puncher interface (RS 232 standard interface of EIA/ISO code.)
04). Dry run.
05). Single block.
06). Tool offset.
07). Optional block skip.
08). M/S/T functions.
09). PC ladder display.
10). Manual pulse generator.
11). Rapid traverse override (F0, 25, 50, 100%).
12). Run hour and parts count display.
13). Multiple repetitive cycles for turning.
14). Tool nose radius compensation.
15). Constant surface speed control.
16). Fanuc 2 year warranty.
17). Dynamic Graphic Display.
18). Manual Guide-0i.
19). 8.4” color LCD.
20). Program Memory—1280M.
