Specifications:

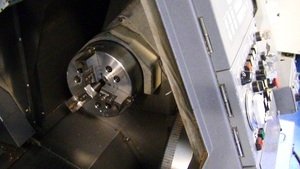

Chuck Size 1st spindle / 2nd Spindle...... 8" Hyd. / 6" Hydraulic
Maximum Swing / Over Carriage.......... 21.25" / 21.25"
Maximum Cutting Length...................... 39.5"
Max. Bar Capacity-Main........................ 2"
Travel X axis......................................... 20.87"
Travel Z axis.......................................... 42"
Travel Y axis / W Axis Tavel.................. +/- 3.15" / 39.56"
B Axis.................................................... (.001 deg) incr
Spindle Nose / Spindle Bore................. A2-6 "/ 2.4"
Spindle Speed....................................... 35 ~ 5000 RPM
Spindle Motor / Spindle Indexing........... 20 HP / .001 degree
Rotary Tool Spindle Speed................... 6,000 RPM
Rotary Tool Spindle HP......................... 20 HP
Magazine Capacity................................ 40 Positions ATC
Tool Shank............................................ KM 63
Machine Size.......................................... 138"x83"x96"
Machine Weight...................................... 12,900 lbs
Equipped With:
Mazatrol Fusion 640MT Control Tool Life Monitoring
Automatic Tool Eye Y Axis Capability
Subspindle (W Axis) B Axis
Automatic Chuck Operation Chuck Air Blast
Coolant Thru the Mill Spindle Front Door Interlock
All Available Tooling 10.4" Color CRT
RS-232C Port for DNC Interface 3.5" Floppy Disk Drive
IC Memory Card I/F PCMCIA Interface
