Description:
Lathe, 2 Axis CNC, Flat Bed, Universal, Totally Reconditioned/Retrofitted in 1998, Fanuc 21i-T Control, Max swing Over Bed/Crossslide 30"/18", Max Cut Dia 30", 4.6" Max Bar Dia x 123" cc, 15-1,200 RPM, 60 HP, 4 Gear Ranges, 8 OD Tool Pos Front Turret & 4 ID tool Pos Back Turret, 16" SMW Air Chuck, Chip Conveyor
Specifications:
1978/1998 Mazak Powermaster 3000
2-Axis CNC Lathe, Universal

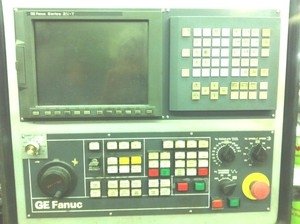

Fanuc 21i-T Control
Specifications:
Maximum Swing Bed/Carriage 30''/18"
Max. Cutting Dia. 30"
Max. Bar Dia. 4.6"
Max. Center Distance 123"
X-Axis Travel 21.25"
Z-Axis Travel 121"
Rapid Traverse X / Z 315/473 IPM
Spindle Motor 30 Min. / Cont. 60 HP D/C
Spindle Speed 15 - 1,200 RPM
Number of Speed Ranges 4
Spindle Nose / Bore A1-11" /4.63"
Turret Type 8 OD Front / 4 ID Back
Tailstock Quill Dia. / Center 5.9" / MT #5 Built In
Machine Dimensions LxWxH 259"x 193"x 77"
Machine Weight 22,670 Ibs
Specifications subject to confirmation at inspection
Totally Reconditioned and Retrofitted in 1998
All Axis Motors & Spindle Drive Replaced
Reconditioned X & Z Ballscrews, New Lube System
Equipped With:
Fanuc 21i-T Control Hydraulic Tailstock

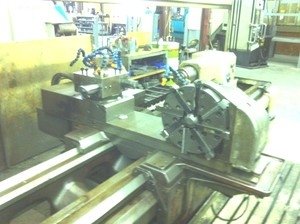

8 Position OD Front Turret 4 Position ID Back Turret
4 Speed Gear Box Rebuilt Spindle Motor

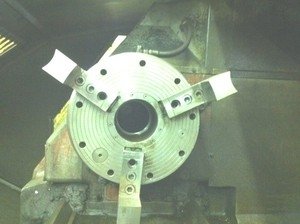

16" SMW Air Chuck Chip Conveyor
All Available Manuals All Available Tooling
Condition: Very Good
Dimensions:
251" L x 78" D x 69" H
Weight:
24,100 lbs
