Description:
Lathe, 2 Axis CNC, Universal, With Mazatrol Matrix Control, Max Swing Over Bed 26.77", 16.5" Max Cut Dia, 4" Max Bar x 60" cc, 3,300 RPM, 40 HP, 12 Position Turret, Tool Eye, 12" Hyd Chuck, Chip Conveyor
Specifications:

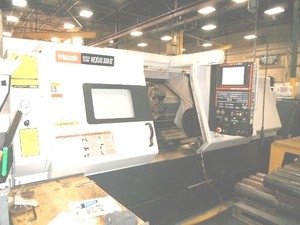

2010 Nexus QTN 350-II 1500
2-AXIS CNC Lathe,Universal
Mazak Matrix Control
Specifications:
Maximum Swing 26.77”
Maximum Cutting Diameter 16.53”
Maximum Diameter Bar 4.0"
Maximum Cutting Length 60"
X Axis Travel 10.63"
Z Axis Travel 63.38"
Rapid Traverse X / Z 1,181/984 IPM
Spindle Nose A2-11"
Spindle Bore 4.4"
Spindle Speed 33 - 3300 RPM
Spindle Motor 40HP
Turret Type 12 Pos. Drum
Tailstock Center MT 5
Machine Dimensions lwh 159.44" X 80" x 78.73"
Machine Weight 17,775 Ibs.
Specifications subject to confirmation at inspection
Machine is equipped with chuck actuator, and draw tube, less chuck
Machine will be supplied with new 12" chuck
Equipped With:
Fusion Matrix Control Conversational Programming
Mazak Voice Adviser Automatic Tool Eye
Auto Base/Manual Steady Rest .78-7.8" Rethreading
213 PSI Coolant Programmable Tailstock
12" Hydraulic Chuck Chip Conveyor
All Available Tooling All Available Manuals
Condition: Very Good
Dimensions:
159.44" X 80" x 78.73"
Weight:
17,775 Ibs
