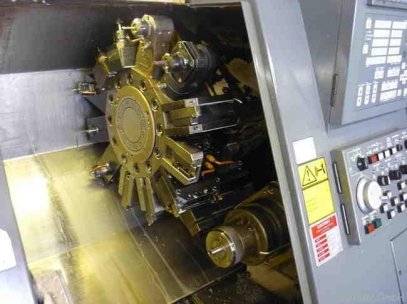

Technical data: Max. Swing diameter 435 mm max. Swing over carriage 370 mm max. Working length mm 305 mm 705 Distance between two spindles max. Bar passage 42 mm travel min-1 XZ axis mm 160/455 Rapid XZ axis m / min 30/30 Rapid C-axis 100 Main spindle RPM 1 Speed 35 6000 Main drive power (30 min. / 100%) kW 11 / 7.5 spindle bore 52 mm collet chuck 42 mm spindle speed min-1 180 6000 Main drive power kW 5,5 collet chuck 42 mm turret with driven Wkz. Number of places 12 tool shank height mm 20 Bohrstangenschaftdurchmesser mm min-1 32 driven tools speed 120 3000 drive power kW 2,2
