Description:
(5) Axis Multi Tasking Turn Mill Center, Opposed Spindle,Mazatrol Fusion 640T Control, Max Swing Over Bed/Carriage 20.67"/13.78", Max Cut Dia 11.8", Main/Sub 2"/1.75" Max Bar x 22.7" Max between Spindles, 22.6" Z, 23" B (Sub Spindle Travel), Main/Sub C Axis .001 Degree, 5,000 RPM Main/Sub, 25 HP Main, 10 HP Sub, 12 Position VDI Turret, 5HP Rotary Spindle Motor, Rotary Tool Speeds to 4,500 RPM, 8" Chuck Main, 6" Chuck Sub, Auto Tool Eye, (2) Live Tool Holders, Auto Parts Catcher, Chip Conveyor
Specifications:

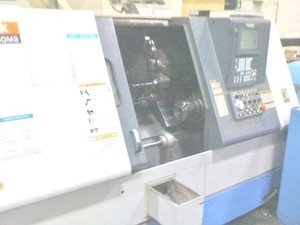

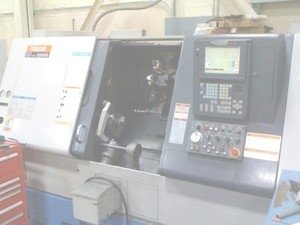

2000 Mazak Super Quick Turn 200MS
(5) Axis CNC Multitasking Turning/Milling Center
Mazatrol Fusion 640T
Specifications:
Maximum Swing/Over Carriage 20.67"/13.78"
Maximum Cutting Diameter 11.8"
Distance Between Spindles 22.7"
Maximum Bar Diameter 2.0"
X Axis Travel 7.5"
Z Axis Travel 22.64"
B Axis Travel (Sub Spindle) 23"
C Axis (Main/Sub Spindle) Poisitioning 360,000
Rapid Traverse X,Z/B/C 1180/709 IPM/400RPM
Main Spindle Nose / Bore A2-6/2.4"
Sub Spindle Nose A2-5
Spindle Motor Main/Sub 25/10 HP
Spindle Speeds Main/Sub 35 - 5000 RPM
Rotary Tool Spindle HP/Speed 5 HP/4,500 RPM

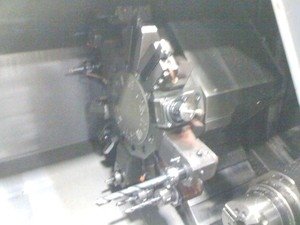

Turret Positions/Type 12/Mod VDI
Machine Dimensions HxLxW 77" x 117.7" x 66.8"
Machine Weight 11,881 Ibs.
Specifications subject to confirmation at inspection
Equipped With:

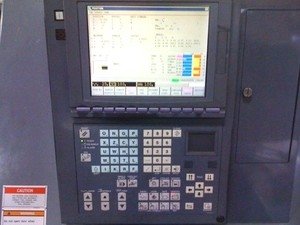

Mazatrol Fusion 640T Control Conversational Programming
Sub Spindle Tool Eye
Broken Tool Detection Auto Parts Catcher

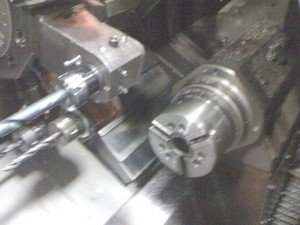

8" Chuck Main 6" Chuck Sub
2 Live Tool Holders Chip Conveyor
All Available Tooling All Available Manuals
Condition: Very Good
Dimensions:
77" x 117.7" x 66.8"
Weight:
11,881 Ibs.
