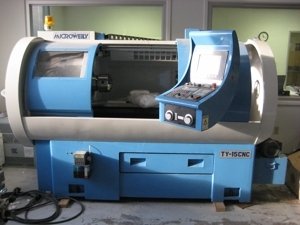

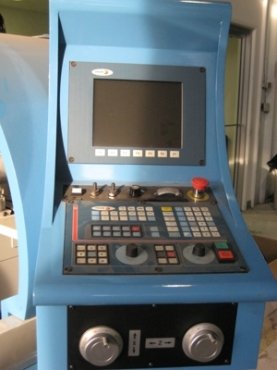

Easy to use Fagor 8055TC control for quickly creating or editing programs. Features electronic handwheels for manual positioning of X and Z axes.
Specifications:
Specification Description
Control: Fagor 8055TC
Swing over bed: 16"
Swing over cross slide: 9"
Center height: 9"
Max. distance between centers: 40"
Bed width: 14-1/2"
Bed height: 13-3/8"
Spindle bore: 2-3/8"
Spindle nose: D1-6
Spindle speeds: 150-4000 RPM
Chuck diameter: 7-1/2"
Motor for main spindle: 10 HP
Motor for coolant pump: 1/8 HP
Travel X: 10-5/8"
Travel Z: 38-37/64"
Rapid traverse X: 5m/min
Rapid traverse Z: 5m/min
Overall dimensions, L x D x H: 99-3/4" x 55" x 72-1/2"
Weight, approx.: 2600 kg
Equipped With:
7-1/2" self-centering manual 3 jaw chuck 5-1/2" steady rest 8 station hydraulic turret mounted at rear of crosslide T-slotted crosslide for adjustable set up of boring bars or production gang tools
