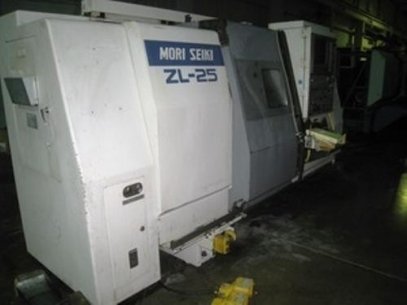

1995 Mori Seiki ZL-25A/500 CNC Lathe 4 Axis FANUC Control

SPECIFICATIONS:

Swing over bed 20.5"
Swing over cross slide 13.8"
Between centers 25.4"
Max. machining diameter 10.2"
Max. machining length 21.7"
X-Axis Up:6.3"(1.2"+5.1")
Z-Axis Up:23.2"(Down:23.2")
Spindle speed 42-4200 RPM
Spindle nose JIS A-6
Hole thru spindle 2.4"
Spindle I.D. 4.3"
Shank height for square tool 1.0"
Shank diameter for boring bar Max. 2.0"
Rapid feed rate (Z-Axis) 590.6"
Tailstock stroke 23.2"
Tailstock quill taper MT3
Tailstock quill stroke 3.1"
Electric power supply 40 Kva
Machine Weight (approx) 15,400 Lbs

EQUIPPED WITH:
Mori/Fanuc MSD-516 (Fanuc 16T) CNC controls Programable tailstock
(2) Turrets
Misc. turret toolholders
Collect chuck
Chip Conveyor
Splash guards

Specifications
Chuck Size:8" / 203.2 mm
Bar Capacity:2" / 50.8 mm
# Axis:4
Power:25hp / 18.6 kW
RPM:4200 rpm
Turning Dia:10.200 " / 259.1 mm
Swing:20.500 " / 520.7 mm
Centers:21.700 " / 551.2 mm
Tailstock (Yes/No):Yes
Dimensions178 x 68 x 75
Weight15000
Control:Fanuc 16T
