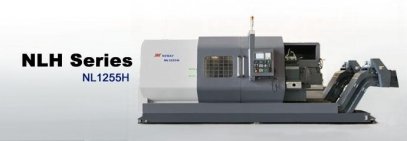

Integrated machine utilizes flat structure, mechatronic design, closed-enclosure shielding ,reasonable layout, slinky shape
l Especial “ flat – mountain –flat” combined guideway structure is used to bed, convenient chip conveying , be suitable for heavy cutting.
l Automatic chips conveyor from front and back solve the chip-conveying problem of the flat-structured machine tool.
l Spindle adopts three-point support structure, the best design of span, imported high precision bearings, ensure strong rigidity, great accuracy
l M、S function instruction control is utilized to spindle, four-stage automatic speed change, wide adjustable speed ranges, best conditions for all workpieces.
l HIWIN high precision ball screws are used to X、Y axises, high positioning accuracy and repeatability.
l Optional postpositional wheel head、milling head and boring bar can grind、mill and bore to workpieces.
l Reliable electrical turret of vertical and horizontal type, high precision, tools be selected logically as near as possible.
l Forced spindle lubrication system and Nanjing Bijur automatic lubrication system to guideways and ball screw, usage life can be improved greatly.
