MAXIMUM SWING OVER BED - 22.44"
MAXIMUM TURNING DIAMETER - 15.75"
MAXIMUM SWING - 24”
DISTANCE BETWEEN CENTERS - 55.12"
MAXIMUM TURNING LENGTH - 60"
RAPID TRAVERSE RATE, X AXIS - 200 IPM
RAPID TRAVERSE RATE, Z AXIS - 400 IPM
SPINDLE NOSE - A2-11

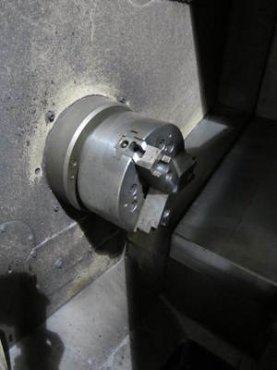

CHUCK SIZE - 15”
SPINDLE BORE DIAMETER - 3.54"
MAXIMUM BAR CAPACITY - 3.03"
SPINDLE SPEEDS - 10 – 2,500 RPM
SPINDLE MOTOR - 50 HP

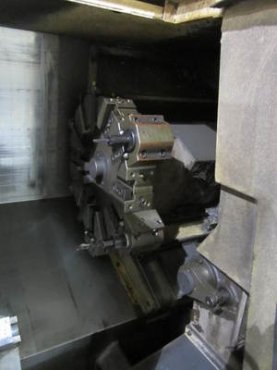

TURRET TOOL CAPACITY - 12 STATIONS
TAILSTOCK QUILL TAPER - MT #5
TAILSTOCK QUILL DIAMETER / STROKE - 4.9" / 4.7"
POWERED STEADY REST - INCLUDED
WEIGHT, APPROXIMATE - 18,000 LBS
INSTALLATION OF MACHINE - AVAILABLE
F.O.B. point is loaded onto customer’s truck in Cornelia, GA.
Terms: 10% with order; balance due before shipment.
Guaranty: Startup guaranty with a 30 day return privilege.
For more information please call Jimmy Payne at 404-886-2687.
