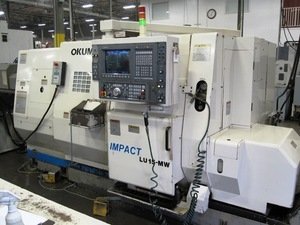

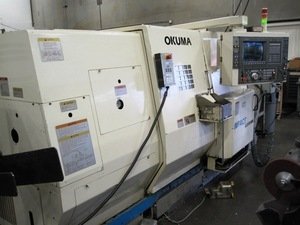

Manufacturer: Okuma
Model: LU-15MW
S/N:
Year: 1998
Condition: Good
Specifications:
Approximate Machine Age: 1998
Chuck Size: 10"
Swing Over Bed 20.87
Max. Cutting Diameter: 13.38" Upper/ 7.08" Lower
Max Turning Length: 23.62"
Spindle Speeds: 45-510-5,000 RPM
Spindle Motor: 30/25
Spindle Nose A2/6
Spindle Bore: 2.44"
Max Bar Size 2.0"
Turret Design: Servo Driven .2 sec.Index S/S
Turret Configuration - Upper: 12 Tools Bidirectional, VDI 40
Turret Configuration - Lower: 8 Tools Bidirectional, VDI 40
Z- Axis Head One Travel 25.20" Upper/ 24.21" Lower
X- Axis Head One Travel 10.23" Upper/ 5.51" Lower
Rapid Travels: X , Z X = 787 / Z = 984 IPM
Min / Max Feed Rate 0.000040--39.3700 IPM
Rotary Tools 9 HP/ 4.4 HP Cont
Rotary Spindle Speed 45-2,200-4,500 Infinitely Vari
Quill Type Dead Quill MT# 5
Quill Diameter / Stroke (3.54") / Stroke: (4.72")
Dimensions: 116" x 80" x 79"
Approximate Weight: 14,960 lbs.
Equipped With:
Okuma OSP U7000L: CNC Control

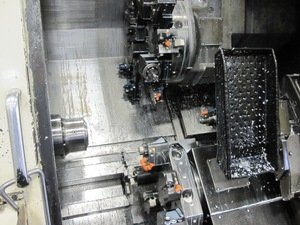

Twin Turret Design
Touchsetter
Lift-up Chip Conveyor
Live Milling Heads
Parts Catcher
Barfeed Interface
Sub Spindle
10" Kitagawa 3-Jaw Chuck
Transformer
Solid Box-Way Construction
All Available Manuals
