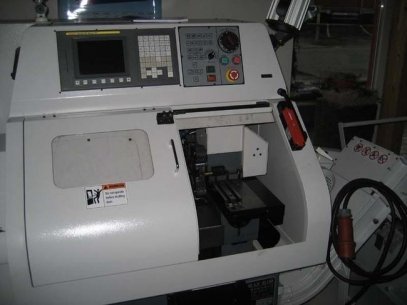

with Fanuc 0T control
max. turning diameter : 60 mm
max. turning length : 120 mm
max. turning diameter over bed : 120 mm
max. travel x - axis : 150 mm
max. travel z - axis : 170 mm
spindle hole : 34 mm
bar capacity : 26 mm
hydraulic jaw chuck : 4"
spindle motor : 100 % ED - 2,2 kW / 50 % ED - 3,7 kW
spindle speed : 100 - 5.000 U / min
rapid traverse x - and z - axis : 15 m / min
smallest programming unit : 0.001 mm

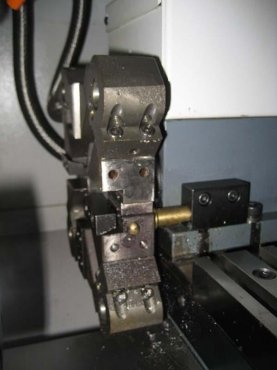

tool holder : 16 x 16 mm - Ø 20 mm
machine size (LxWXH): 1,20 x 1,00 x 1,50 m
machine weight : 1.058 kg
