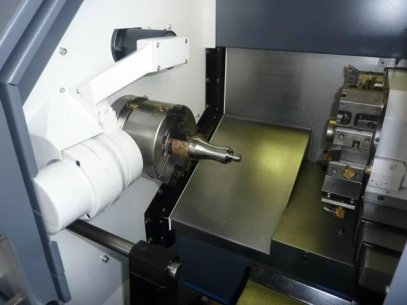

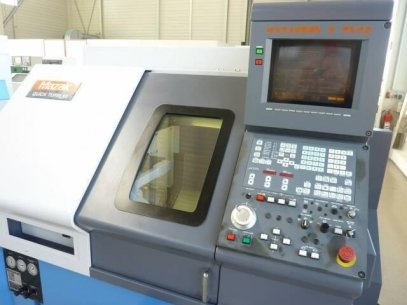

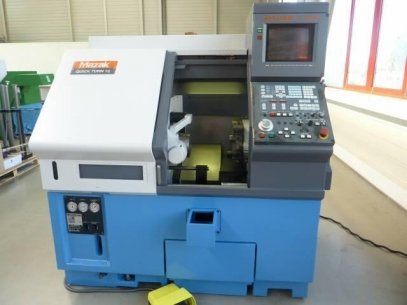

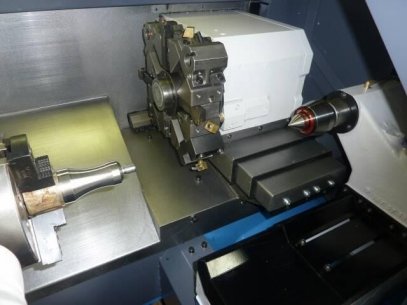

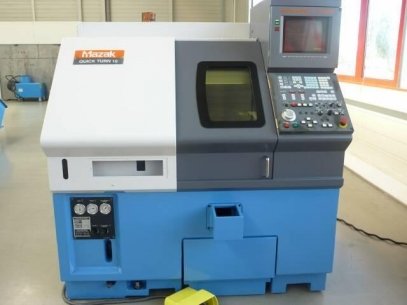

CNC CONTROL Mazatrol T-Plus Monochrome Terminals Specifications: Working area: max. Swing diameter: 300 mm max. Turning diameter: 160 mm max. Turning length: 256 mm main spindle speed range: 60-6000 U / min main power: 7.5 KW max diameter bar work. 40 mm turret: Standard Version: 8x Travel: X-axis travel: 100 mm Z-axis: 290 mm Travel: X-Axis: 30.5 m / min Z-axis: 33 m / min feed range: X-/Z-axis 0-5000 mm / min Tailstock Tailstock travel: 325 mm Pinolenspitze: MK 4 Quill stroke: 95 mm machine data: Power consumption: 23 KVA Machine weight: about 2,650 kg Machine Dimension: L x W x H: approximately 2.00 x 1.35 x 1.92 m NORMALZUBEHOeR: Hydraulic KITAGAWA chuck B-206, diameter 169 mm tool presetting (MAZAK Tool Eye System) coolant and swarf protection by fully enclosed working space dual foot switch for opening / closing of the feed response of the feed-status (open / closed) Manual tailstock with live center front door lock switches on micro-disk interface for MAZAK MSK and cpl. Coolant system work light documentation OPTIONAL: Interface for automatic bar feed. Parts catcher with drip tray high pressure coolant, pressure at the pump about 5.5 bar several tool holders for 8-station turret
