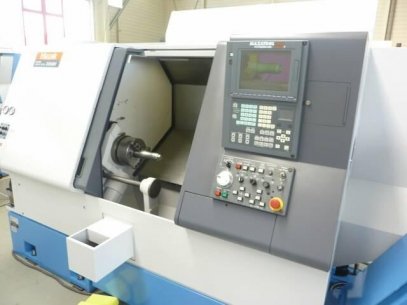

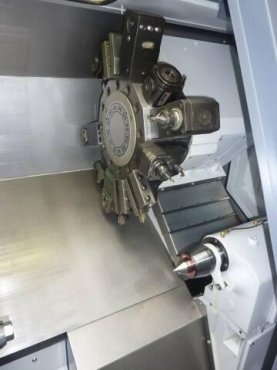

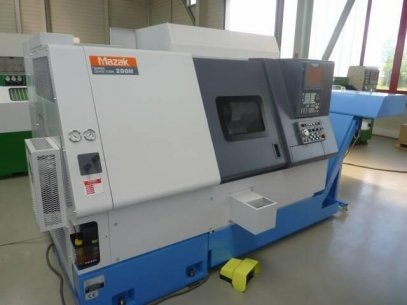

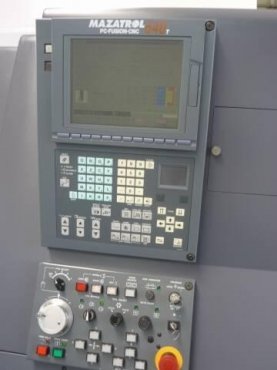

Initial: 12-2001 CNC CONTROL Mazatrol PC Fusion CNC 640T Specifications: Working area: max. Swing diameter: 525 mm max. Turning diameter: 300 mm max. Turning length: 538 mm diameter bar work up to max. 51 mm main spindle speed range: 35-5000 U / min Main drive power: 18.5 kW constant torque: 350 Nm spindle bore 61 mm spindle positioning c-axis: 0 -360 / 0,001 Turret: Number of tools: 12 (any size can be fitted with fixed and driven tools) Driven Tools: Power: 3.7 KW max. Torque: 35 Nm Speed range: 120-4500 r / min Travel: X-axis travel: 190 mm Z-axis: 575 mm Travel: X axis: 30 m / min Z-axis: 30 m / min C axis: 400 U / min feed range: X / Z-axis: 0-5,000 mm / min tailstock quill stroke: 150 mm taper: MT 5 Tailstock travel: 400 mm Machine Specifications: Power consumption: 35 KVA Machine weight: 4850 kg Machine Dimension: L x W x H: approximately 3.10 x 1.70 x 2.20 m NORMALZUBEHOeR: KITAGAWA hydraulic chuck B-208, diameter 210 mm tool presetting (MAZAK Tool Eye system) automatic C-axis dual foot switch for opening / closing of the feed. Opening / closing of the feed and food law, feedback status (open / closed) NC programmable tailstock front door lock assy. Coolant system coolant and swarf protection by fully encapsulated A [...Technical data truncated]
