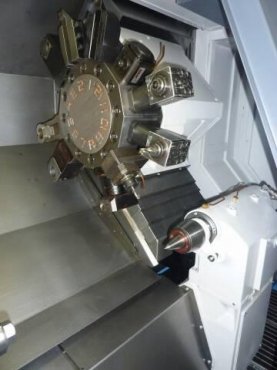

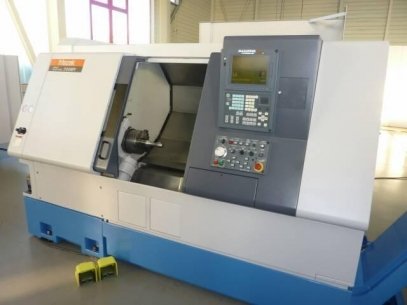

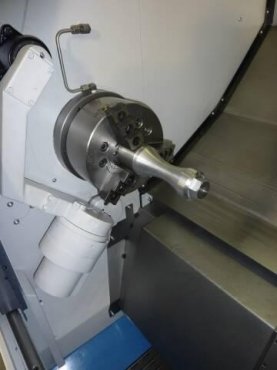

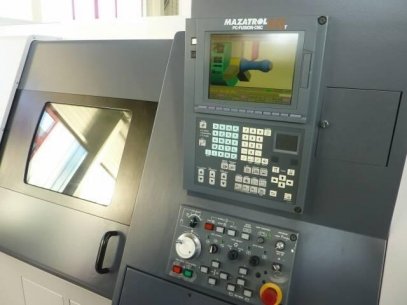

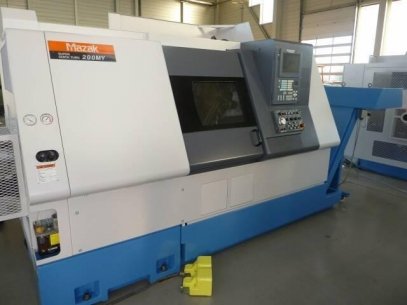

Initial: 12-1999 CNC CONTROL Mazatrol PC Fusion CNC 640T Specifications: Working area: max. Swing diameter: 525 mm max. Turning diameter: 300 mm max. Turning length: 538 mm diameter bar work up to max. 51 mm main spindle speed range: 35-5000 U / min Main drive power: 18.5 kW constant torque: 350 Nm spindle bore 61 mm spindle positioning c-axis: 0 -360 / 0,001 Turret: Number of tools: 12 (any size can be fitted with fixed and driven tools) Driven Tools: Power: 3.7 KW max. Torque: 35 Nm Speed range: 120-4500 r / min Travel: X-axis travel: 180 mm Y-axis travel: 100 mm Z-axis: 575 mm Travel: X axis: 30 m / min Z-axis: 30 m / min Feed range: X / Z-axis: 0-2000 mm / min C axis: 1 -2000 / min tailstock quill stroke: 150 mm taper: MT 5 Tailstock travel: 400 mm Machine Specifications: Power consumption: 36.3 KVA Machine weight: about 5,400 kg Machine Dimension: L x W x H: approx 3.10 x 1.80 x 2.00 m NORMALZUBEHOeR: KITAGAWA hydraulic chuck B-208, diameter 210 mm tool presetting (MAZAK Tool Eye system) Dual footswitch C-axis, Y axis for automatic opening / closing of the feed. Opening / closing of the feed and food law, feedback status (open / closed) NC programmable tailstock front door lock assy. Coolant system coolant [...Technical data truncated]
