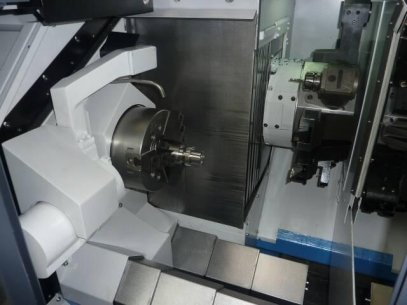

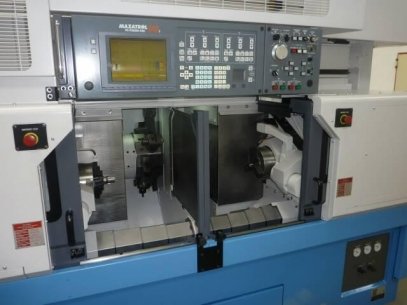

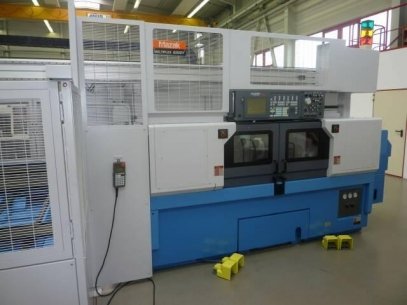

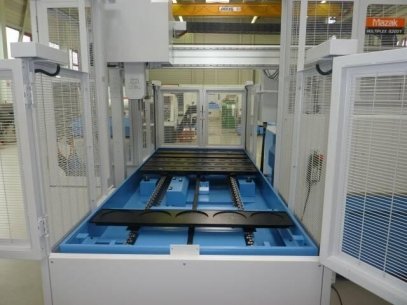

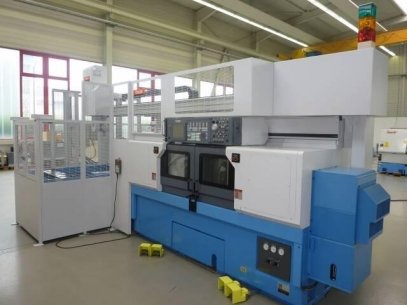

CNC CONTROL CNC Mazatrol PC Fusion 640T Specifications: Work area: max. Swing diameter: 320 mm max. Swing diameter over bed: 320 mm diameter bar work up to max. 51 mm spindle head (head 1 and 2) Speed range: 35-5000 U / min Main drive power: 22 kW max. Torque: 349 Nm spindle bore: 61 mm Chuck diameter: 210 mm spindle positioning c-axis: 0 -360 / 0,001 turret (Turret 1 and 2): Number of tool stations: 12 each (arbitrarily fitted with fixed and live tools) Driven Tools: Power: 3.7 KW max. Torque: 35 Nm Speed range: 25-4500 U / min traverse: X-axis: (Turret 1 and 2): 240 mm Y-axis: (Turret 1 and 2): 100 mm Z-axis travel: Head 1: 440 mm head 2: 495 mm of travel: X axis: 30.5 m / min Z-axis: 33 m / min Feed: X / Z-axis: 35-5000 mm / min C-axis: 1-33 U / min machine data: Power consumption: 80.1 KVA Machine weight: 8,400 kg Machine Dimensions L x W x H (with gantry loader): approximately 6.00 x 4.00 x 3.00 m NORMALZUBEHOeR: Hydraulic chuck KITAGAWA B-208, diameter 210 mm (for head 1 and 2) tool presetting (MAZAK Tool Eye system), right and left C-axis, Y-axis front door lock (for head 1 and 2) complete. Coolant system Coolant and chip protection by fully enclosed work space work space lighting (for head 1 and 2) pur [...Technical data truncated]
