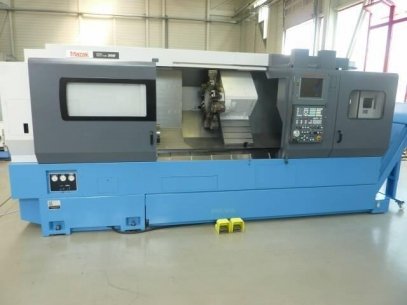

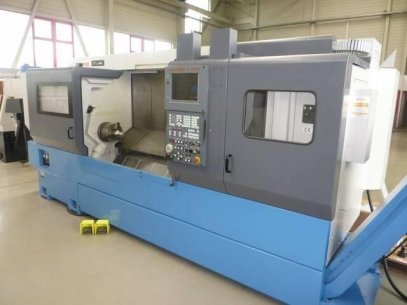

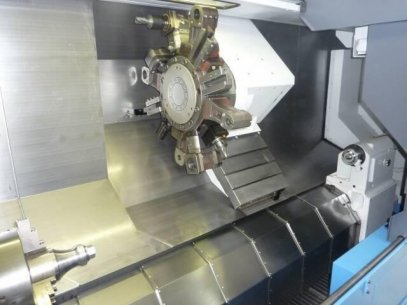

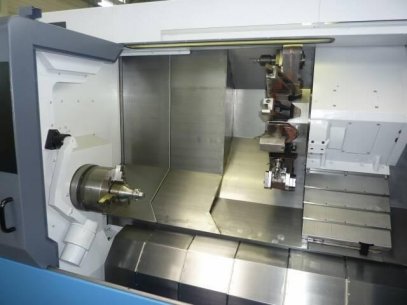

CNC CONTROL Mazatrol T-Plus color graphics screen Specifications: Working area: max. Swing diameter: 560 mm max. Turning diameter: 410 mm max. Turning length: 1,532 mm diameter bar work up to max. 77 mm main spindle speed range: 35-3500 U / min Main drive power: 22 kW spindle bore: 88 mm Spindle positioning c-axis: 0 -360 / 0,001 Turret: Number of tools: 12 (any size can be fitted with fixed and driven tools) Driven Tools: Drive power : 7.5 KW max. Torque: 96 Nm Speed range: 90-1500 U / min Travel: X-axis travel: 245 mm Z-axis: 1,545 mm Rapid traverse: X-axis: 18 m / min Z-axis: 24 m / min feed range: x/z- axis: 0-5,000 mm / min tailstock quill stroke 130 mm Recording: MT 4 Tailstock: 1,395 mm machine data: Power consumption: 48 KVA Machine weight: 7000 kg Machine Dimension: L x W x H: approx 4.00 x 1, 80 x 2.15 m NORMALZUBEHOeR: SMW hydraulic chuck, diameter 254 mm tool presetting (MAZAK Tool Eye system) automatic C-axis dual foot switch for opening / closing of the feed. Opening / closing of the feed and food law, feedback status (open / closed) NC programmable tailstock front door lock assy. Coolant system coolant and swarf protection by fully enclosed work space workspace lighting Graphic dynamic Prozessimulation Werkzeugstandzei [...Technical data truncated]
