stock number 20-335

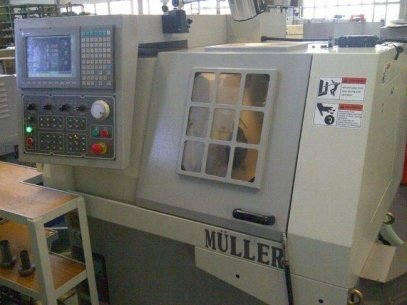

Machine CNC automatic lathe with sliding headstock
Type KBS-32A
New in 2011
Country of origin Taiwan
Immediate delivery time
Freight basis ex location

Technical Details
Main spindle 32 mm
Turned parts up to 120 mm
Turning length 160 mm
c-axis 0.001 °
Mainsspindlespeed ​​of 6,000 rpm

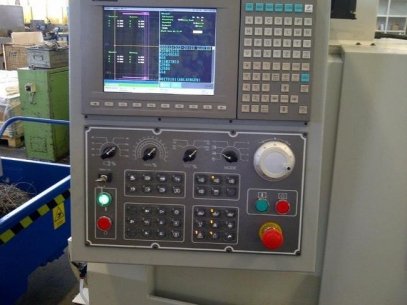

Control Mitsubishi Syntec 900

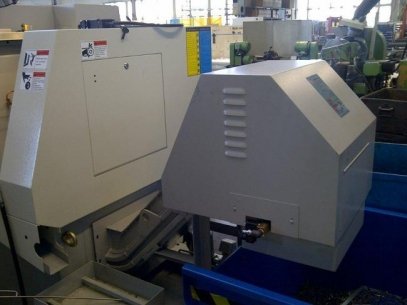

Chip conveyor hinge
Machine weight approx 2.2 tonnes
Overall dimensions (LxWxH) 2,5 x1, 4x1, 65m

equipment:
o Control Mitsubishi Syntec 900
o main spindle 5/7, 5 kW, max. 6000 r / min

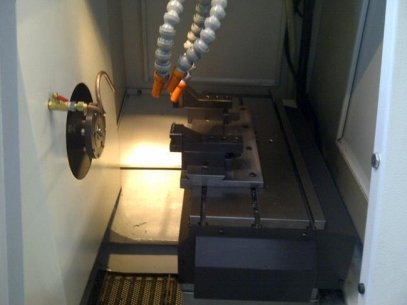

o Linear system tool on two axes, X / Z for main operations
o X-axis 250 mm, rapid traverse: 30 m
o Z-axis 160 mm, rapid traverse: 30 mm
o Function axis C1, 0.001 ° increments
o Teileaufabfuehrsystem
o German software
o Tool life management

Alterations and errors in technical details and specifications without notice.

-
