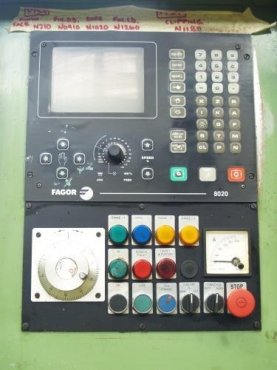

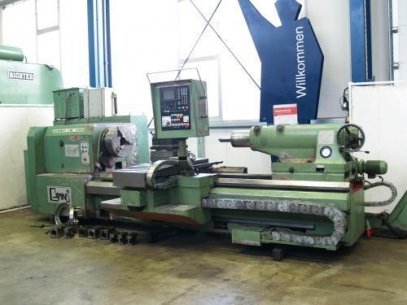

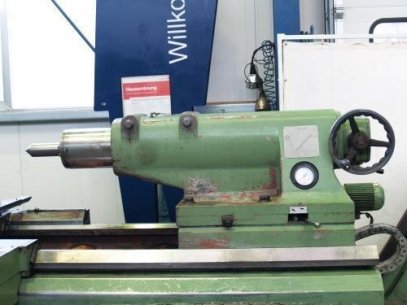

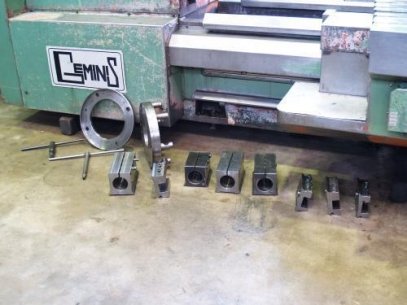

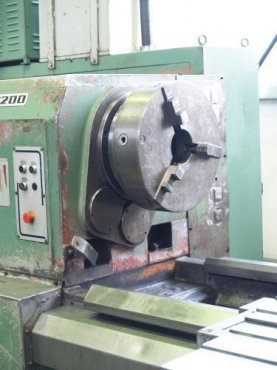

CNC Zyklengesteürte lathe GEMINIS type CNC 1200 Year 1985 CNC FAGOR 8020T peak width 2000 mm Height of centers over bed 545 mm Height over cross slide 270 mm Cross travel 860 mm bed width 800 mm Taper in about MK 6-second recording spindle bore 105 mm spindle head size Cammlock size 15 Spindle speed range 1 Gear stage from 2.8 to 90 U / min. = 12500 Nm 2 Gear range 3.5 to 180 rpm. = 6250 Nm 3 Gearing level 3.5 - min 355 U /. = 3125 Nm fourth Gear range 3.5 - 710 rpm /. = 1562 Nm spindle drive power 51.6 kW power supply 400 volt, 50 Hz - ton manual Pinolverschiebung over 2-speed transmission with power gauge to 12 - CNC FAGOR 8020T - electronic hand wheel - gear-range circuit with 4 gear stages - motorized verschiebarer tailstock Rastklemmung. - Tailstock with revolving tailstock - automatic 4-speed quick-change tool holder SAUTER 035 667 8 inserts - 3-jaw chuck 500 mm - Chip conveyor - Coolant system without coolant tank but with electric pump - fixed panel on the machine - interface V 24 space L x W x H 5800 x 2200 x 2000 mm, weight 12 tons. very good condition of the guides, good general condition
