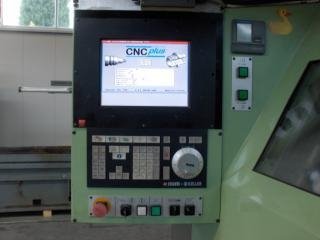

control NUM – KELLER, CNC-Plus 1060 T
working area:
swing diameter over bed/saddle 680/425 mm
turning length 3.000 mm
movement face plate 450 mm
movement longitudinal slide 3.000 mm

main spindle:
spindle head DIN 55027 Gr. 8 (CAM-LOCK)
spindle boring 105 mm
total speed range 7 – 2.000 min-1
gear steps 2
power 28 kW

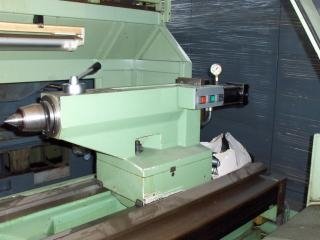

turret:
quill diameter 110 mm
quill stroke 250 mm
quilll taper MK 5
hydraulic adjustable

dimensions, weight:
length x width x height 5,7 x 2,25 x 1,815 m
weight ca. 6.000 kgs

-
