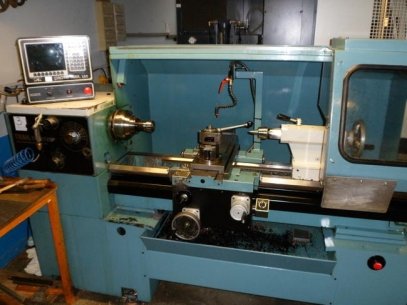

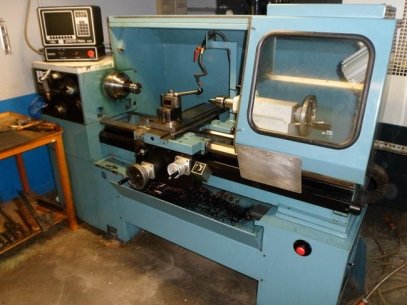

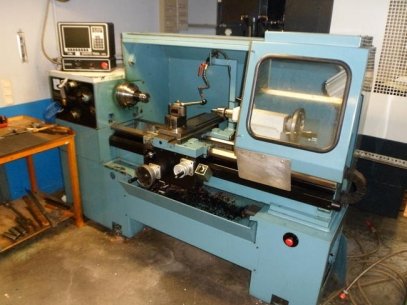

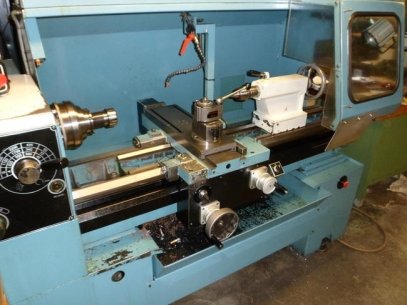

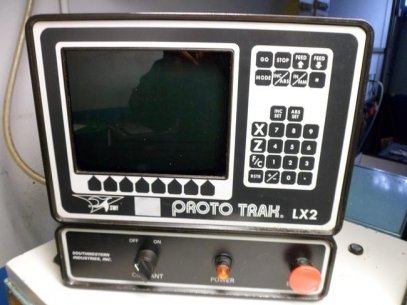

Height: 225 mm Distance between centers: 1000 mm Swing over bed: 450mm Swing over Qürschlitten: 410 mm Tool Size: 25x25 mmm Bed Width: 300 mm Spindle nose: DIN 55021/Gr.6 spindle bore: 52 mm inner cone of the spindle: Morse 5 spindle speeds: 40 - 2200 U / pM in 12 steps Quill stroke: 150mm tailstock quill: 58 mm inner cone of the barrel: Morse 4 spindle motor: 5.5 kw Coolant: 16 liters Engine coolant pump: 0,05 kw Dimensions LxWxH: 2300x1100x1600 Weight: 1100 KG LX 2 control machine can also be operated conventionally.
