We are pleased to quote for you the following. Please note that these are approximate specifications only. We advise that you personally inspect this machine before purchasing it to verify the following information:

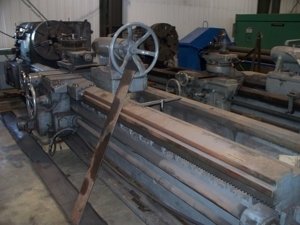

1-Used Churchill 34” x 144” Engine Lathe
Model Number: BV32
Serial Number: L6711208
Mfg: 3-1967
Specifications:
Spindle Speeds (28) 4.9-400
Feeds .100-.002 in/rev
Inch Threads 1-56 TPI
Metric Threads .5-250mm
Spindle Bore 4.5”
Motor 25 HP
Dimensions 21’L x 5’W x 5.5’H
Weight 34,000 Lbs
Machine Equipped With:
25” 4 Jaw Chuck, 4 Way Tool Post, Rapid Traverse
