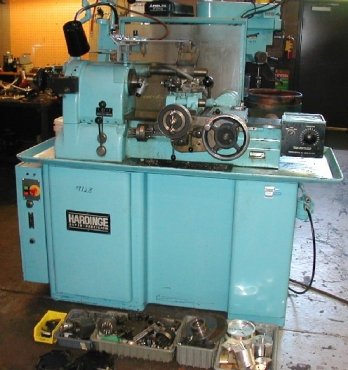

HARDINGE HCT CHUCKING / SECOND OPERATION LATHE, 125 - 3000 RPM, 8-POSITION TURRET, 1 1/16" COLLET CAPACITY, FAST LEVER COLLET CLOSER, THREADING ATTACHMENT, (9128)
Specifications:
Capacity, round 5C collets 1-1/16”
hexagon 5C collets 7/8”
square 5C collets 3/4”
5C step chucks 1-1/16” - 6”
jaw chucks 6”
Spindle nose diameter 2.189”
Spindle nose thread 2-3/16” - 10 R.H.
Maximum fixture diameter 9”
Maximum length for threading 6” external, 5” internal
Maximum distance from face of turret to spindle 1-3/4”
Travel of cross slide 4-1/2”
Cross slide power feed range 11/32” - 6-1/4” per min.
Carriage power feed range 1/4” - 10” per min.
Spindle speed 125 - 3000 rpm
Approximate dimensions 30” w x 70” d x 64” h
Approximate weight 2,000 lbs.
