Description:
13" x Hardinge, HC, 5C spdl & collet closer, 1.5HP, 3PH, 125-3000RPM var, tooling, nice
Specifications:

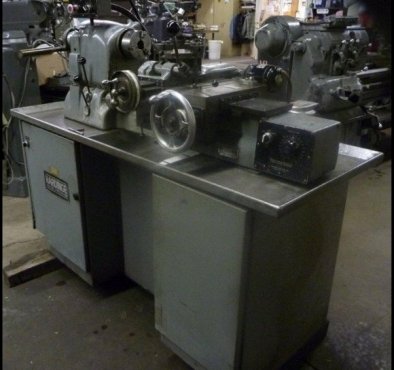

Pre-Owned HARDINGE Model HC Precision
Toolroom Lathe * Serial No. 4849
General Specifications, Approximate
Subject to verification
Swing over bed 13”
Spindle hole 5C, which is just under 1-3/8”
Spindle nose type Hardinge
Spindle speeds, variable, 125 to 3000 RPM
Main motor 1.5 HP, 3 PH, 208/220V
Carriage feed, variable, 0 to 100 IPR
Approx weight 3000#
Approx dimensions 5-1/2’ L x 3-1/2W x 5’H
Inventory #2422
Complete With
-Longitudinal and cross power and manual feeds
-Dovetail bed, hardened & ground
-2 new 6” chucks, 3 jaw and 4 jaw
-5C collet closer, lever type
-3 misc toolholders
-8 position turret on carriage
-Coolant pump
-k jaws with 3” expanding collet ?
Condition: Runs well, cleaned up & checked out.
