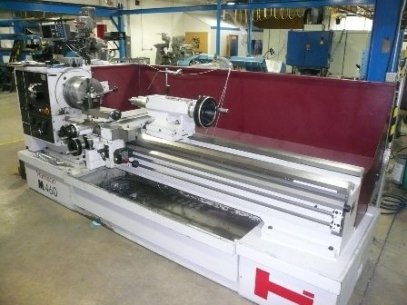

18" x 80" HARRISON #M460, 3" HOLE, 3 JAW CK, DRO, 1998 (8892)

Swing 18"
Distance between centers 80"
Swing over crossslide 10.625"
Centers Height 9”
In Gap Diameter 28-3/4” x 8 1/2" length
Spindle Bore 3”
Nose D1-8 Camlock
Morse Taper in Nose 5 MT
Speeds Number (3) infinitely variable 20 to 2, 000 RPM
Leadscrew Diameter 1-1/2”
Thread 6mm pitch or 4 TPI
Threads Metric Pitches 78 from 0.2 to 14mm
Imperial Pitches 79 from 2 to 84 TPI
Module Pitches 47 from 0.2 to 3.5 MOD
Diametral Pitches 47 from 8 to 72 DP
Feeds (38) .04 to .84mm/rev
Imperial (38) .0016 to .110in/rev
Cross Slide Width 8”
Travel 11-7/8”
Top Slide Width 5-1/4”
Travel 6”
Tailstock Quill Diameter 3-1/4”
Travel 5-11/16”
Morse Taper 6 MT
Approximate Weight 5,753 lbs.
Approximate overall Dimensions 128" x 67" x 81”
