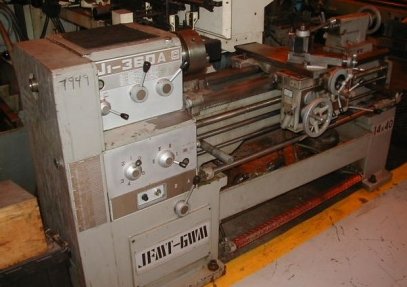

14” x 40” JFMT-GWM GAP BED ENGINE LATHE, 3 AND 4 JAW CHKS, GAP, 1992, (7949)
Specifications:
Swing over bed 14”
Swing over cross slide 8 1/4”
Gap 9”
Swing in the gap 19” approx.
Distance between centers 40”
Spindle hole 1 9/16”
Spindle speeds (8) 38 - 2000 rpm
Tailstock taper #4MT
Motor 5 HP
Approximate overall dimensions 82”W x 46”D x 54”H
Approximate weight 3,000 lbs.
