LEBLOND, 1610 H.D., ENGINE, LATHES

Condition:Used
Category:LATHES
Type:ENGINE
Manufacturer:LEBLOND
Model:1610 H.D.
YOM:10
Location:United States, Grand Rapids
Price:On request
Stock No:-
Control:Manual
ID:AS1050

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

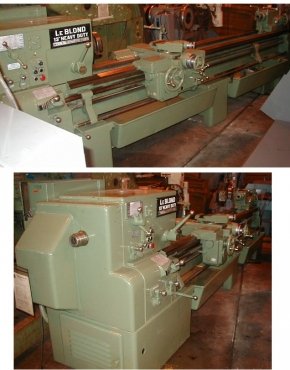

18” x 102” LEBLOND #1610 H.D., 20 HP, 2250 RPM, T/S FEED, 4-JAW CK, S/R, 1961

Specifications:

Swing over bed 18”
Swing over cross slide 11”
Distance between centers 102”
Spindle speeds (27) 18 - 2250 rpm
Feeds (120) 0.0011 - 0.205 ipr
Threads (60) 2 - 120 tpi
Spindle nose L-1
Spindle taper #4 Morse
Cross slide travel 19”
Tailstock spindle diameter 3-5/8”
Hole thru spindle 1 3/4”
Motor 20 hp
Approximate overall dimension 180”W x 48”D x 62”H
Approximate weight 9,500 lbs.

Dealer name:

Turner Industries United States, Grand Rapids
