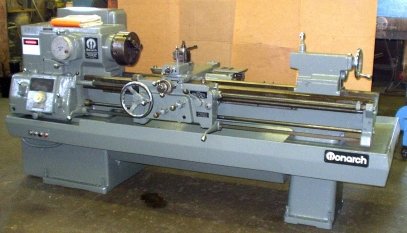

16" x 54" MONARCH SERIES 50, 1800 RPM V/S, TAPER, 10HP, 3&4-JAW, COLLET, 1977 (8970)
Specifications:
Swing over bed 16 1/2"
Swing over cross slide 10 1/2"
Distance between centers 54"
Spindle speeds (3-ranges) 30 - 1800 (variable in ranges)
Feed range (54) .0011 - .070 inch/rev.
Thread range (54) 1 1/2 - 92 tpi
Spindle nose D1-6
Spindle thru hole 1 13/16
Tailstock taper MT #4
Drive motor 10 hp w/ DC variable drive
Dimensions 136" x 44" x 47" high
Weight 4,800 lbs.
