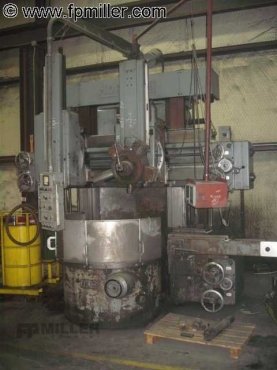

Morando 48" "3" head Vertical Turret Lathe

48" Diameter of 4 Jaw Chuck

56" Maximum Swing with Side Head Down

8 to 240 RPM Table Speeds

.05 to 10 IPM Feeds

Left Ram, Right Turret ( 5 Position) Rail Heads

Side Head (right side)

36" Vertical, 30" Horizontal Travels of Ram Head

36" Vertical, 30" Horizontal Travel of Turret Head

30" Vertical, 24" Horizontal Travel of Side Head

40" Maximum Under Rail

30" Vertical Travel of Rail

34" Floor to Top of Table

Both Rail Heads Swivel 30 Degrees

Rapid Traverse to All Heads

Rapid Traverse to Rail

Pendant Control
