Description:

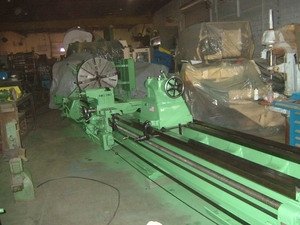

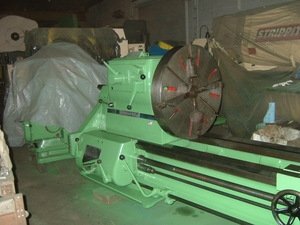

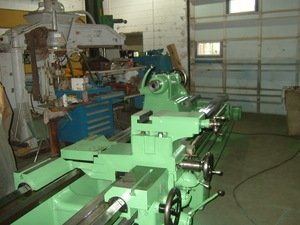

Springfield 40" x 16' Heavy Duty

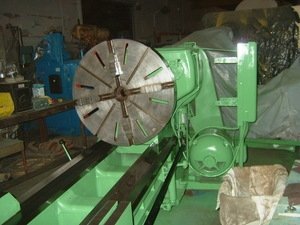

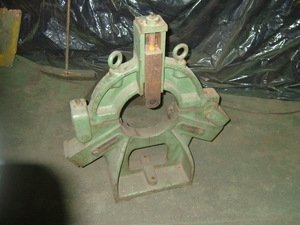

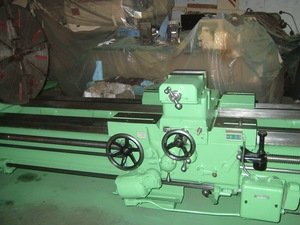

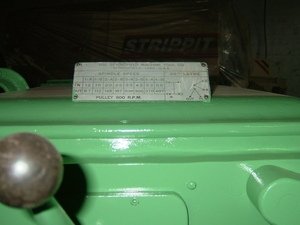

Model 30", Actual swing 40", 16' Between centers, 2 1/8" Thru hole, 36" 4 Jaw Cushman chuck with reversible jaws, 8 Spindle speeds from 12 to 487 rpm, Thread dial on carriage, 60 Thread ranges from 2 to 120, Removable hardened bed ways, 2 Way Aloris quick change tool holder with approx. 6 tool holders, Roller bearing steady rest with 12" thru hole, 2 boring bar attachments, 3 Removable slide out chip coolant catch pans, Main drive motor 25hp 220/440v 3ph, Carriage motor 3hp 220/440v 3ph, Coolant pump 1/3hp 1ph,
Specifications:
Springfield 40" x 16' Heavy Duty

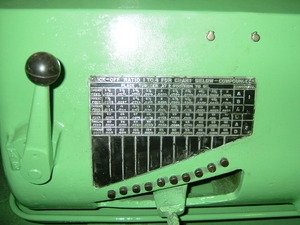

Model 30", Actual swing 40", 16' Between centers, 2 1/8" Thru hole, 36" 4 Jaw Cushman chuck with reversible jaws, 8 Spindle speeds from 12 to 487 rpm, Thread dial on carriage, 60 Thread ranges from 2 to 120, Removable hardened bed ways, 2 Way Aloris quick change tool holder with approx. 6 tool holders, Roller bearing steady rest with 12" thru hole, 2 boring bar attachments, 3 Removable slide out chip coolant catch pans, Main drive motor 25hp 220/440v 3ph, Carriage motor 3hp 220/440v 3ph, Coolant pump 1/3hp 1ph,
Dimensions:
24'x7'x6'
Weight:
28000lbs
