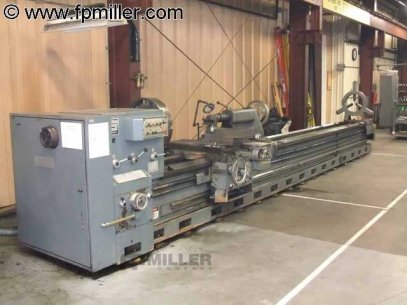

Summit 36" x 285"CC Engine Lathe

Temporary Specifications subject to verification:

Capacities:

36" Swing over bed

47-1/2" Swing over gap

23-1/4" Swing over cross slide

15-3/4" Length of gap in front of face plate


Headstock:

A2-11 Spindle nose

5-1/2" Spindle bore

0-500 RPM Infinitely Variable headstock speeds


Carriage & Apron:

26" Bed width

32-9/32" Length of saddle on bed

24" Cross slide travel

11-13/16" Top slide travel


Gearbox:

42/.002-.22 Longitudinal feeds (no./range)

42/.001-.11 Cross feeds (no./range)

42/9/16-64 Threads per inch (no./range)

42/.75-64 Metric threads (no./range)

42/1-16 Module threads (no./range)


Tailstock:

4-3/4" Diameter of spindle travel

11-13/16" Travel of spindle barrel


Miscellaneous (where applicable)

1"/11 13/16" Steady rest capacities (min./max.)

2"/15-3/4" Follow rest capacities (min./max.)

30 HP DC main motor


Equipped with:

24" Four Jaw Chuck

Coolant Pans and pump

Steady rest

Taper attachment

Miscellaneous centers for tailstock


Dimensions Floor Space:

62" Tall, 68" Wide, 28'-9" Length

29,000 Pounds


As taken from service-Excellent condition
