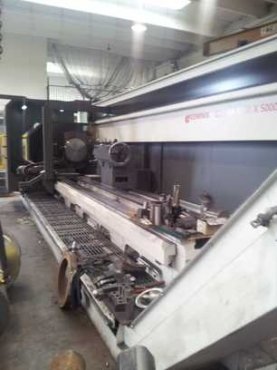

Lathe GEMINIS Mod Mod GT5 4 runners from 5000 NEW Used

Proposal with uninstalling and installing and including 1 year warranty


" GEMINIS " Mod " GT 5 -G4- 1200" with distance between centers 5000
year 2013

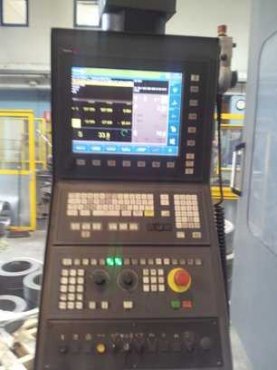

numerical control ' FAGOR 8065 TC ' ,
LCD color monitor - 15 "TFT
- Height of centers mm.610
- Swing over bed mm . 1200
- Diameter on the cross slide mm . 900 HEAD / CHUCK
- Hole Diameter mm main spindle . 162
- Spindle nose ASA 15
- S1/S6 Main motor power 37/46 kW .
- Spindle speed 0
- 900 rev / min.
- Change the range to 4 speed ranges
- Maximum torque S1/S6 8000/9900 Nm WAGONS
- Move fast wagons longitudinal and transverse 8 m / min
- Travel of cross slide 615 mm . TAILSTOCK
- Mm diameter tube . 180
- Metric 80
- 300 mm quill stroke . TABLE
- 1000 mm width guides .
- Height from the ground to guide the plain mm . 850 Maximum weight allowed between centers without lunettes kg.6000
- Net weight of the machine kg.18000

ACCESSORIES INCLUDED IN THE SUPPLY :
- Screws spheres on longitudinal axis and transverse
- Riga optical measurement of axis ' X ' and encoder on axis ' Z '

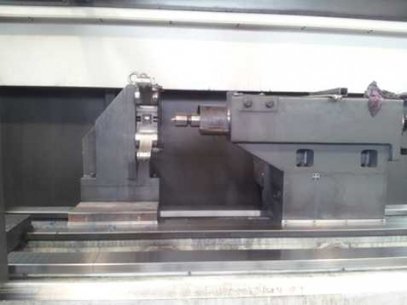

- Tip 60 ° swivel built into the tailstock quill
- System of compensation of thermal expansion of the workpiece
- Reduction Bushing spindle taper
- Body tailstock with motorized movement , manual locking the pallet .
- Moving the tube manually via flyers.
- Remote controlled electronic wheel with cable
- Chip conveyor anterior longitudinal
- Protection of the cross slide through telescopic guards
- CNC Programming Manual
- Manual machine (operation, maintenance, spare parts , etc. . )
Machine color (standard) + gray RAL 7035 gray RAL 7043
Machine complies with CE Machinery Directive 2006/42 EEC .
Supply voltage 400 V./50 Hz / 3 phases. . . .

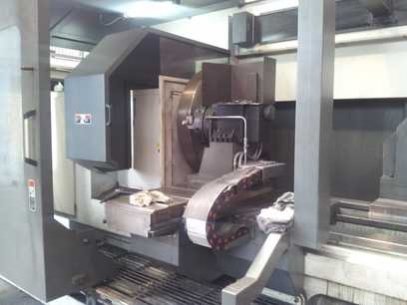

8-position turret SAUTER ,
horizontal axis of rotation .
Mm outer diameter of the disc . 360 ,
2 50 VDI tool holders for external work .
Bezel hydraulics.
- Capacity from 85 to 350 mm .
- 3 supports with bearings
- Permissible weight up to 1100 kg .
- Installed on the rails of the tailstock
- Allows the passage of the wagon
- Motorized movement along the bench and locking system and automatic locking
- Plato steel from 1000

-
