Year built: 2001
TURNING DIAMETER MAX .: 250 mm
TURNING DIAMETER STANDARD: 100 mm
TURNING LENGTH MAX. 535 mm
BAR PASSAGE: 52 mm
AXIS TRAVEL:
AXIS TRAVEL: AXIS X1: 195 mm
AXIS TRAVEL: AXIS X2: 195 mm
AXIS TRAVEL: AXIS Z1: 600 mm
AXIS TRAVEL: AXIS Z2: 600 mm
CHUCK:
ENGINE POWER: 15 KW
SPEED 'ROTATION: 4,500 RPM / MIN.
NOSE CHUCK: A2 - 5

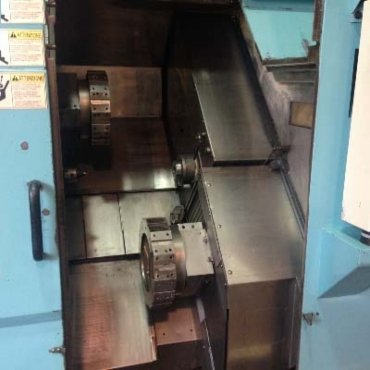

TOWERS:
TOWER TOP: # 12 STATIONS
TOWER BOTTOM: # 12 STATIONS
ADVANCEMENT:
QUICK AXIS X1, X2: 12,000 mm / min.
QUICK AXIS Z1, Z2: 24,000 mm / min.
SIZE AND WEIGHT:
MACHINE HEIGHT: 2,050 mm
BUSY AREA (INCLUDING EVAQUATORE CHIPS): 4,500 mm x 1,930 mm
MACHINE WEIGHT: KG. 7,500
PRODUCTION YEAR 2001
ACCESSORIES:
HOME CHUCKS CHUCK;
