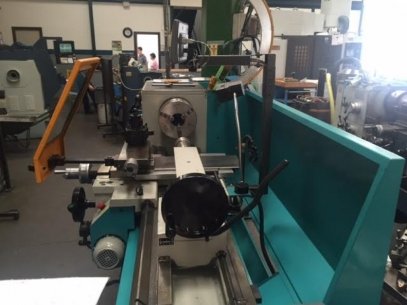

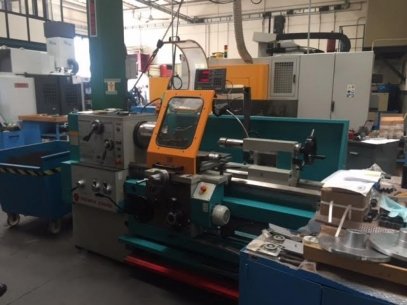

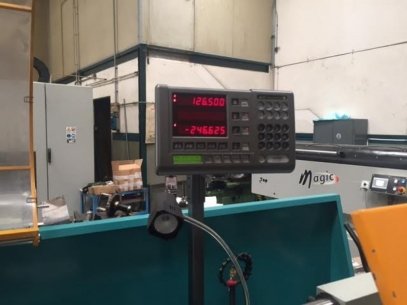

Lathe Italian Sibimex tips height 250 mm, turning diameter over bed mm. 500, turning diameter over carriage mm 300 mm turning diameter on recess 670. Distance between centers mm. 1500 mm bar capacity. 62, spindle nose cam lock 8 ", spindle speed range 20-2000, quick run lengthwise from 0.04 to 12 mm / rev, engine power 7.5 kW, 3-jaw chuck, weighing 2630 kg with 3-axis viewer.
Specifications:
Technical specifications
Brand And Model SIBIMEX ITALIAN CU 500
Spindle nose cam lock 8
step bar 62
number Giri 2000
X-axis stroke 1500
turning diameter ON BENCH ON THE WAGON 500-300 SU-670 mm RECESS
Spindle power 7.5 kW
Transmission Range 3 ranges
turning length 1500
Chuck Hydraulic O Mechanic mechanic
number Turrets 1 4 position
