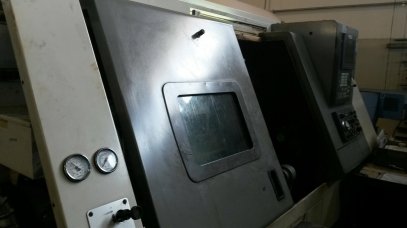

Lathe Mazak Super Quick Turn 250 MSY
year 2003

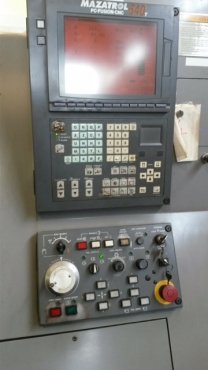

Control Mazatrol 640 T
Spindle nose ASA 8
4000 rpm
Turning diameter mm. 300
Turning length mm. 500

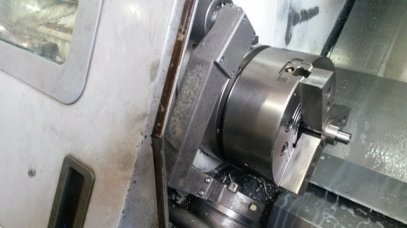

Chuck diam. 250 mm bar passage. 65

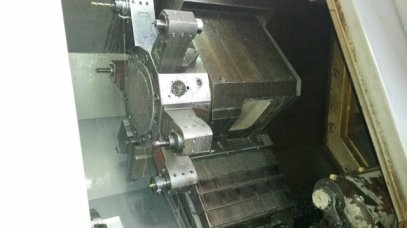

12x turret motorized
Set of tool holders fixed Nr. 1 motorized tool holder axial Nr. 1 motorized tool holder radial
Axis "C"
"Y" axis stroke mm. +/- 50
hydraulic tailstock
arm collect
Reset tool presetting
chip conveyor
