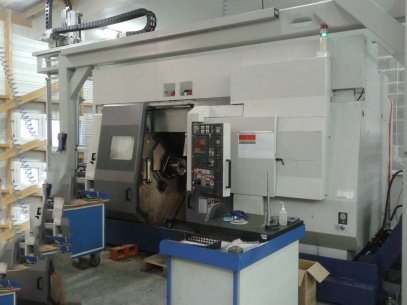

2-spindle turret lathe Mori Seiki ZT2500 with motorized gantry loader

WARNING: TECHNICAL GUIDANCE

Turning diameter 390/360 millimetri
TURNING length 350 mm

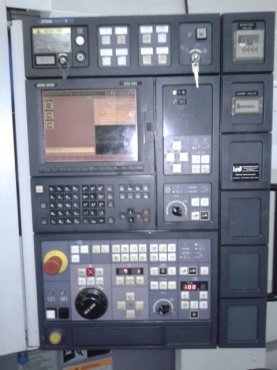

Control: Fanuc 18iTA Mapps
weight of the machine ca. 14 t
dimensions of the machine ca:. 5330 x 2840 x 2690 mm

Other information:
Multi-axis CNC turning center with double spindle, double turret, c-axis.

Turning diameter contromadrino max. 360 mm
1300 mm Distance between spindle noses
Swing over bed 700 mm
Racing:
X1 280 mm
X2 200 mm
Z1 960 mm
Z2 960 mm
Y + / - 70 mm (to check if present)
B 985 mm
C1 and C2 speed of 300 rpm
Rotary tool spindle speed 4000 rpm
Ability to work 73 mm Bar

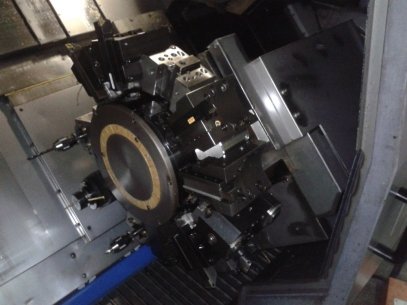

Number of tool stations # 1 of 12 motorized head # 2 12 motorized head
Range of spindle speed 40-4000 rpm
advancement:
X1, X2, Z1, Z2 and B axis 24 m / min.
Y-axis 12 m / min. (Check if applicable)
Chuck input 22/15 kW

For action is also information call or send us an e-mail.

-
