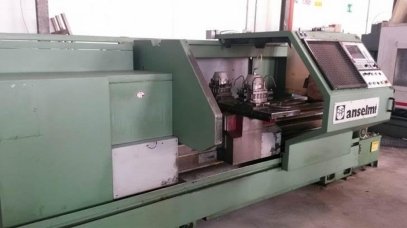

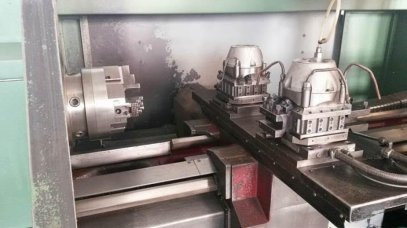

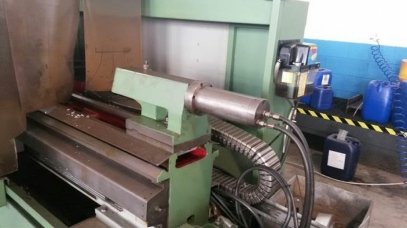

The lathe has a control Fagor 8055 TC, the centre height is mm. the distance of 210 mm. 1700 and the bar passage of mm. 60, 2500 rpm with hydraulic Chuck Autoblok diam. 250. The number of towers is holding 2 full positions in 4 Baruffaldi. Hydraulic tailstock.
Technical specifications
Make and model Anselmi Center lathe
Year built 2002
Bar gap mm. 60
Rpm 2500 RPM
Turning diameter over 500
Turning length 1700
Chuck diameter hydraulic Chuck Autoblok diam. 250
Hydraulic or mechanical hydraulic Chuck Chuck Autoblok
Fagor 8055 TC model Cnc Control
