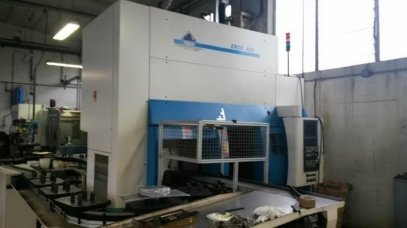

Lathe Famar Ergo 400 years 2002

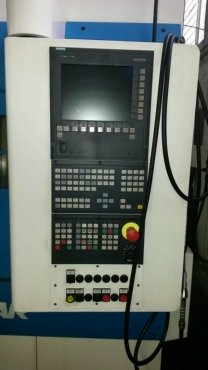

Control Siemens 840

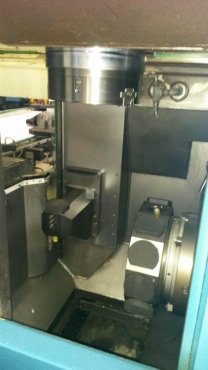

fixed tool holder


the tool kit supplied


working hours 4000

Standard chuck diameter [mm] 400

Rated turning diameter [mm] 300


Maximum chuck diameter [mm] 400

Maximum working diameter [mm] 400

maximum turning diameter [mm] 480

maximum working length [mm] 300
X axis working stroke [mm] 395

Total X axis stroke [mm] 1100
total Z-axis stroke [mm] 330
Fast Z-axis [m / min] 60

Rapid X axis [m / min] 75

recirculating screw diameter of spheres axis X [mm] 50


Diameter recirculating ball Z axis [mm] 40

recirculating screw diameter of spheres axis Y [mm]



ELECTRO HOME
front bearing Ø [mm] 130

spindle nose [ASA] 8

Rated torque [Nm] 458
max speed. [Rpm] 4000
Max. [Nm] 724
Rated power [kW] 49.6
Max. [KW] 61.7
Tools [No.] 12
Maximum tool length [mm] 220
type of tool [VDI] 50
Tool change time [sec] 0.25
Machine weight [kg] 14000

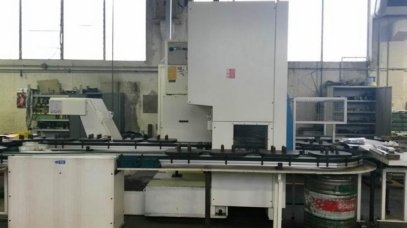

Height chip conveyor [mm] 1050
Length / width / height [mm] (without chip conveyor) 3200/2200/3200.
Charging time / drain [sec] 6-10

-
