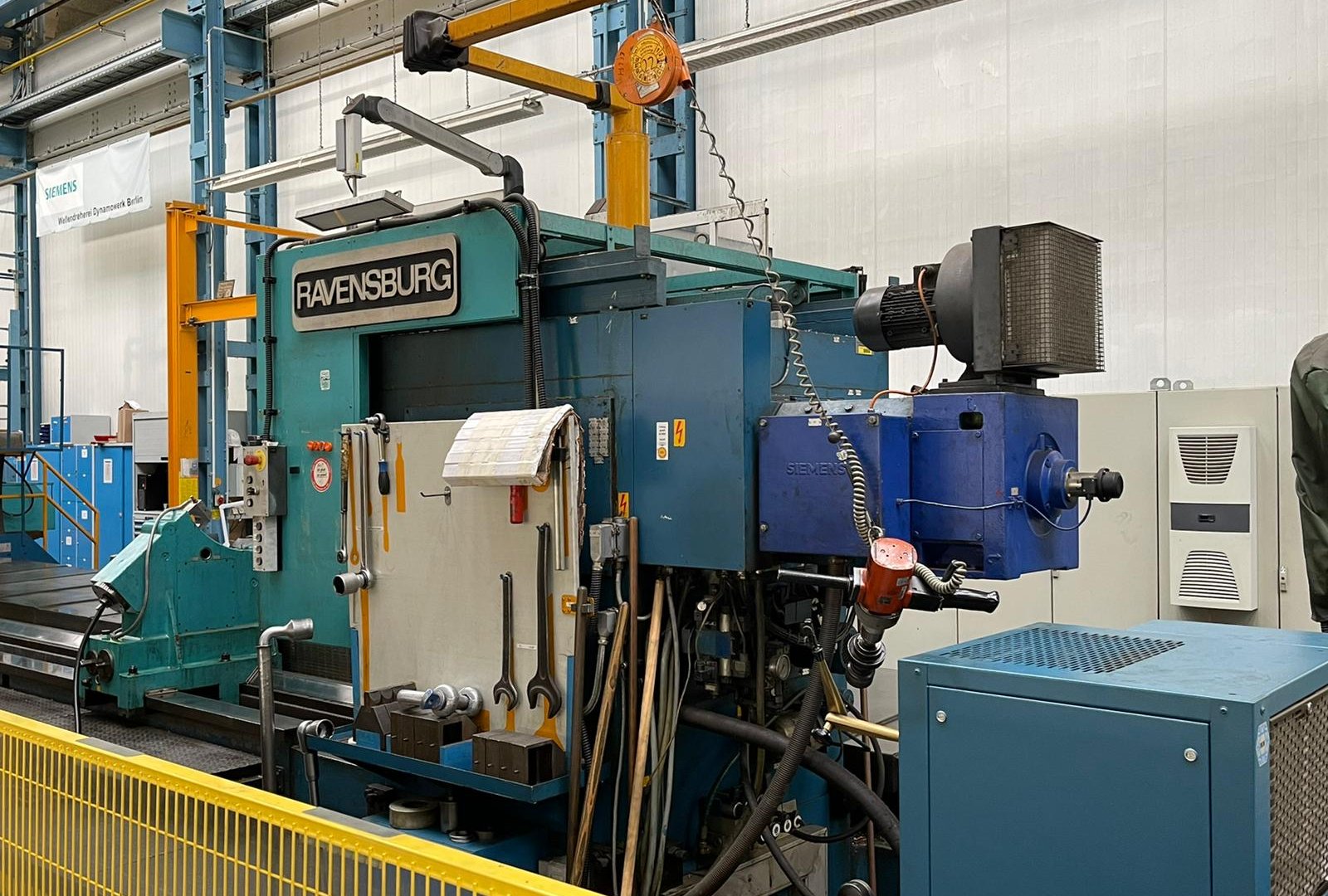

CNC turning lathe Ravensburg - KVH3 - 1000 CNC Ø 2000 x 6000 with Milling & Grinding 6613 = Mach4metal
Max. turning Ø:2.000mm
X-Axis: 780mm
Z-Axis: 9.470mm
Spindle bore: 150mm
Speedrange: 600Rpm
Spindle power: 80kW
ATC / revolver:4
Length: 17.000 mm
Width: 6.500 mm
Height: 3.200 mm
Weight: 67.000 kg
Work load 15 t (20t)
Hydrostatic guideways support

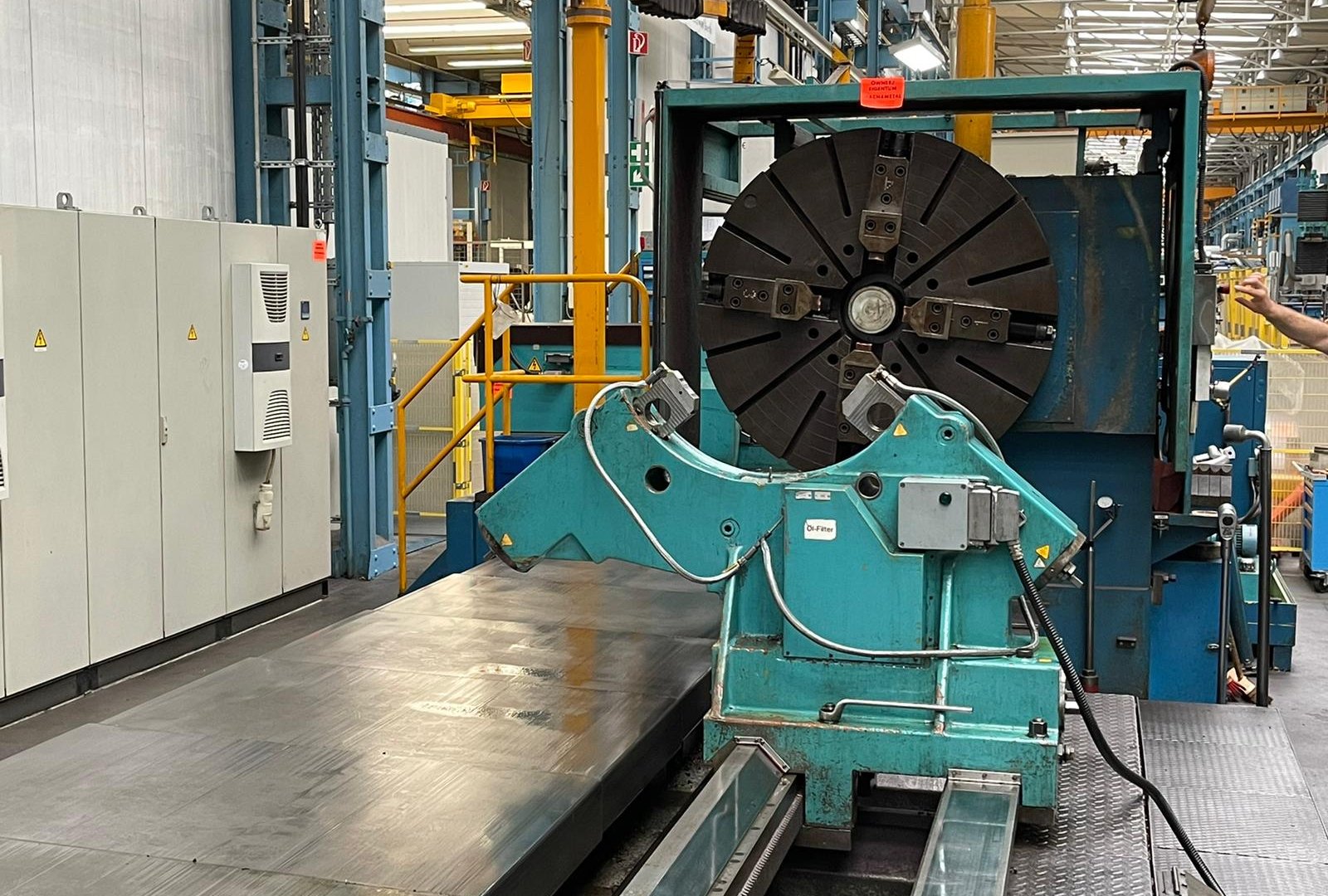

Chuck 1300 mm

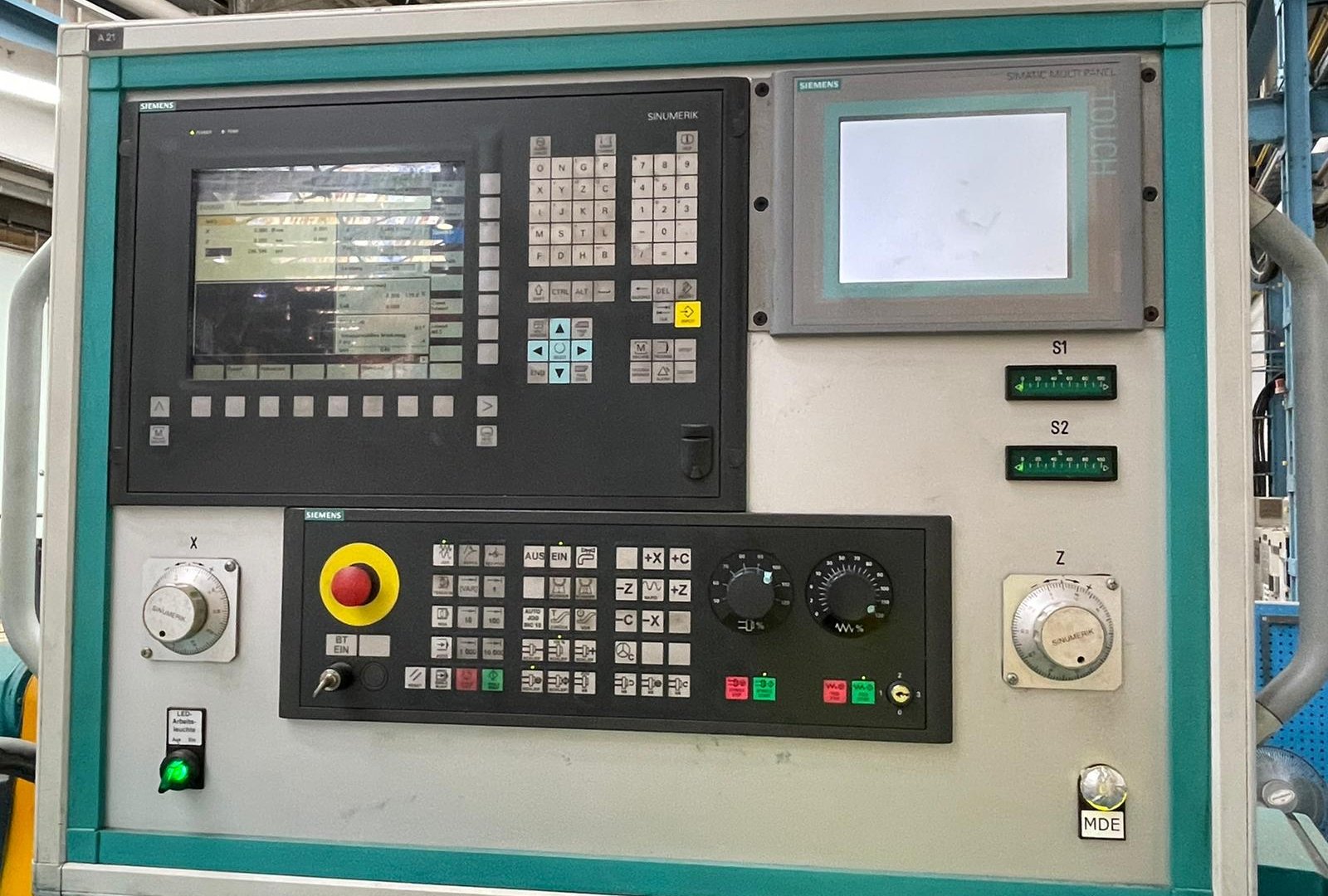

Siemens 840 power line X/Z/C Axis
C Axis 360.000 direct driven

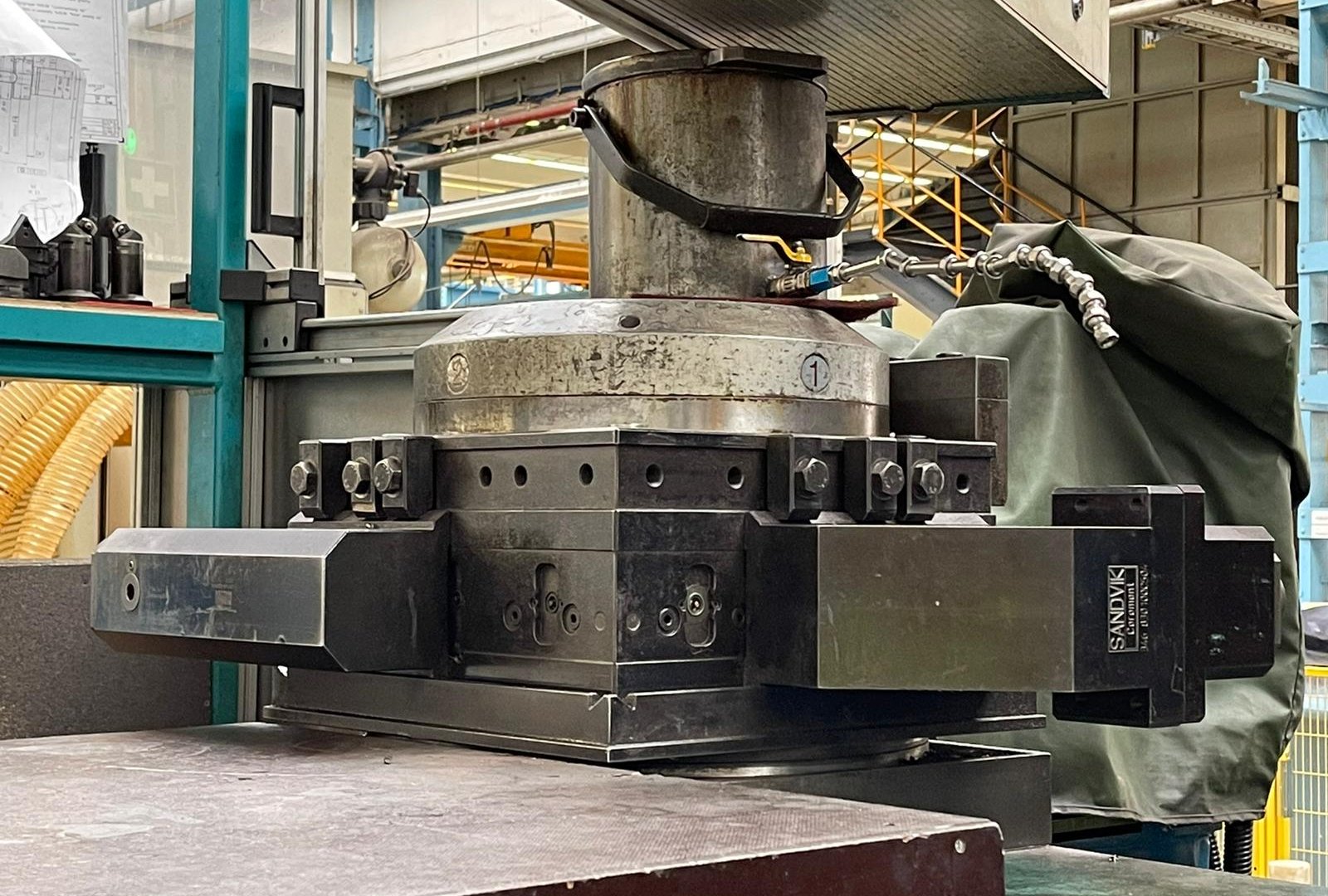

Sauter 4 position tool system CAPTO C6
2 x Steady rest 500 + 750 mm
Milling attachment Sk40 / 1500 RPm / 4,5 kW
Specifications:
CNC turning lathe Ravensburg - KVH3 - 1000 CNC Ø 2000 x 6000 with Milling & Grinding 6613 = Mach4metal
Max. turning Ø:2.000mm
X-Axis: 780mm
Z-Axis: 9.470mm
Spindle bore: 150mm
Speedrange: 600Rpm
Spindle power: 80kW
ATC / revolver:4
Length: 17.000 mm
Width: 6.500 mm
Height: 3.200 mm
Weight: 67.000 kg
Work load 15 t (20t)
Hydrostatic guideways support
Chuck 1300 mm
Siemens 840 power line X/Z/C Axis
C Axis 360.000 direct driven
Sauter 4 position tool system CAPTO C6
2 x Steady rest 500 + 750 mm
Milling attachment Sk40 / 1500 RPm / 4,5 kW
